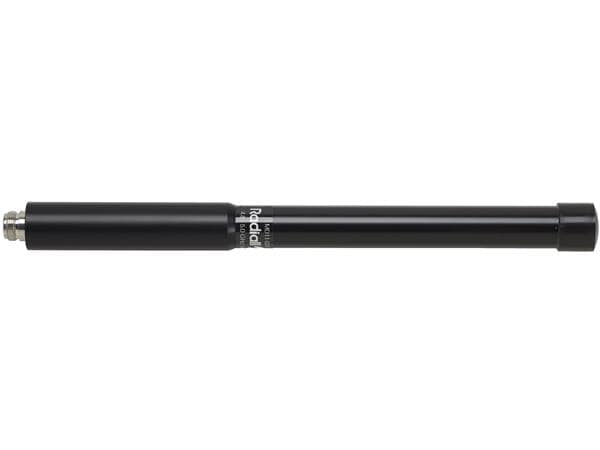

Radiall MD11-037 Passive Antenna Antenna 4.8-5.0 GHz 6 dBi, FOAM FILLED
Manufacturer: Radiall Model: MD11-037 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Gain: 6 dBi
VSWR: 2.0:1
Style: Radome
Length: 294.26 mm
Diameter: 25.4 mm
Impedance: 50 Ohms
Technology: Radome Omni
Application: Wireless Applications
Unit Weight: 184.272 g
Polarization: Vertical
Power Rating: 10 W
Mounting Style: Bracket Mount
Number of Bands: 1 Band
Center Frequency: 4.9 GHz
Mechanical Style: Collinear
Maximum Frequency: 5 GHz
Minimum Frequency: 4.8 GHz
Termination Style: Connector
Antenna Connector Type: N Female
Protocol - WiFi - 802.11: 802.11, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 5G, Cellular (NBIoT, LTE)
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
