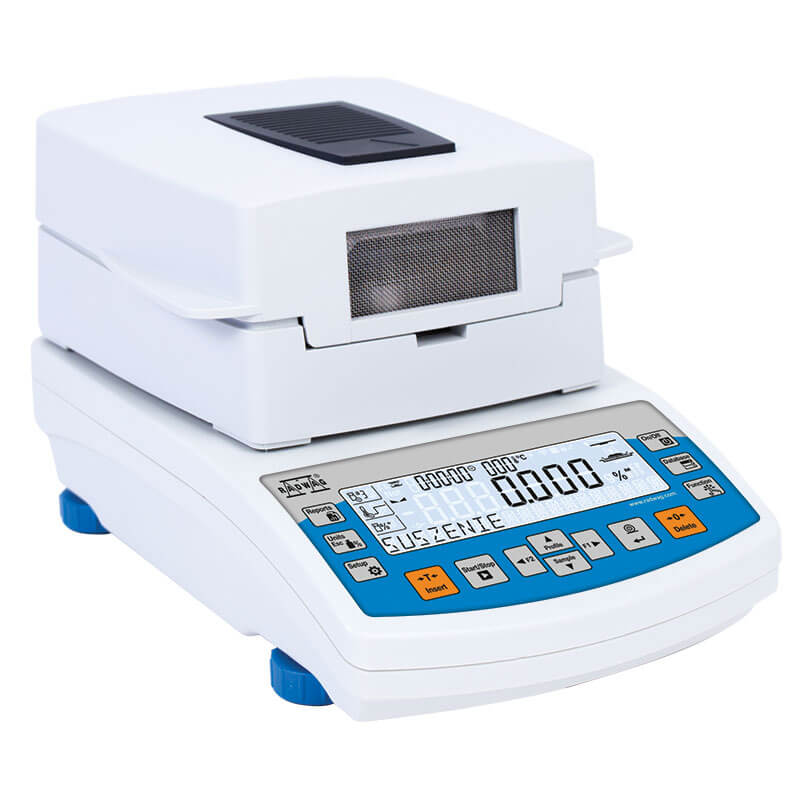

RADWAG MA 210.R.WH Moisture Analyzer (210 g, 1mg)

Metrological parameters

-Maximum capacity [Max]: 210 g

-Readability [d]: 1 mg

-Tare range: -210 g

-Adjustment: external

-Maximum sample weight: 210 g

-Heating module:  halogen

-Moisture content repeatability: +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)

-Moisture content readability: 0.001%

-Drying temperature range: Max 250 °C

Physical parameters

-Leveling system: manual

-Display: LCD (backlit)

-Weighing chamber: automatic

-Maximum sample height: 20 mm

-Weighing pan dimensions: ø90, h= 8 mm

- Net weight: 4.8 kg

- Gross weight: 5.5 kg

- Protection class: IP 43

Features of use

-Display mode: %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC

-Drying method: 4 drying profiles (standard, fast, step, mild)

-Finish mode: 4 modes (automatic, manual, time-defined, user-defined)

-Additional functions: sample traceability

Communication interface

-Communication interface: RS232¹, USB-A, USB-B, Wi-Fi®

-Electrical parameters:

- Power supply: 200V-240V AC 50/60Hz

- Power consumption: 6 W

-Heating module power: 450 W

Environmental conditions

-Operating temperature: +10 — +40 °C

SOP – metrological tests

-Mass indication control: External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)

- Internal adjustment: For .IC models only, GLP report

-External adjustment: For all models, GLP report

-Drying temperature control: One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer)

-Moisture content indication control: Certified MV Test Set

Adjustment

-Internal / External adjustment: Depending on the type of moisture analyzer, GLP report

-Drying temperature adjustment: Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)
