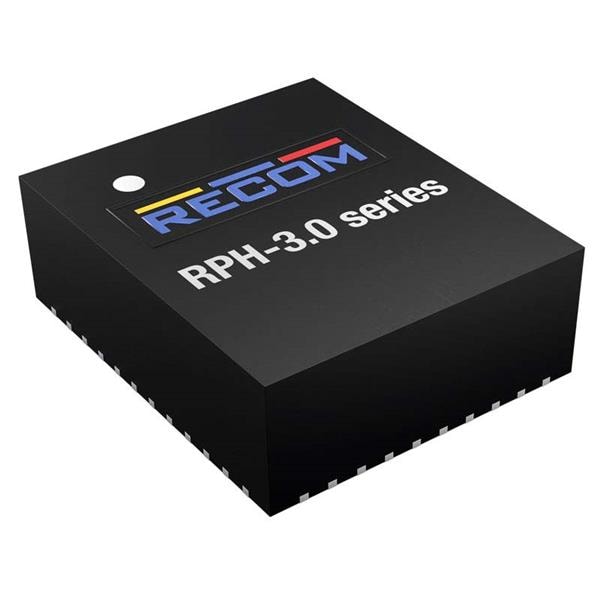

RECOM Power RPH-3.0-T Non Isolated Step Down Power Module 3A DC/DC-Converter 'INNOLINE' SMD reg
Manufacturer: RECOM Power Model: RPH-3.0-T - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Shutdown: Shutdown
Topology: Buck
Input Voltage: 4.5 VDC to 55 VDC
Mounting Style: SMD/SMT
Output Current: 3 A
Output Voltage: 1 V to 15 V
Number of Outputs: 1 Output
Quiescent Current: 450 uA
Moisture Sensitive: Yes
Input Voltage - Max: 55 V
Input Voltage - Min: 4.5 V
Switching Frequency: 520 kHz
Supply Voltage - Min: 4.5 VDC
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
