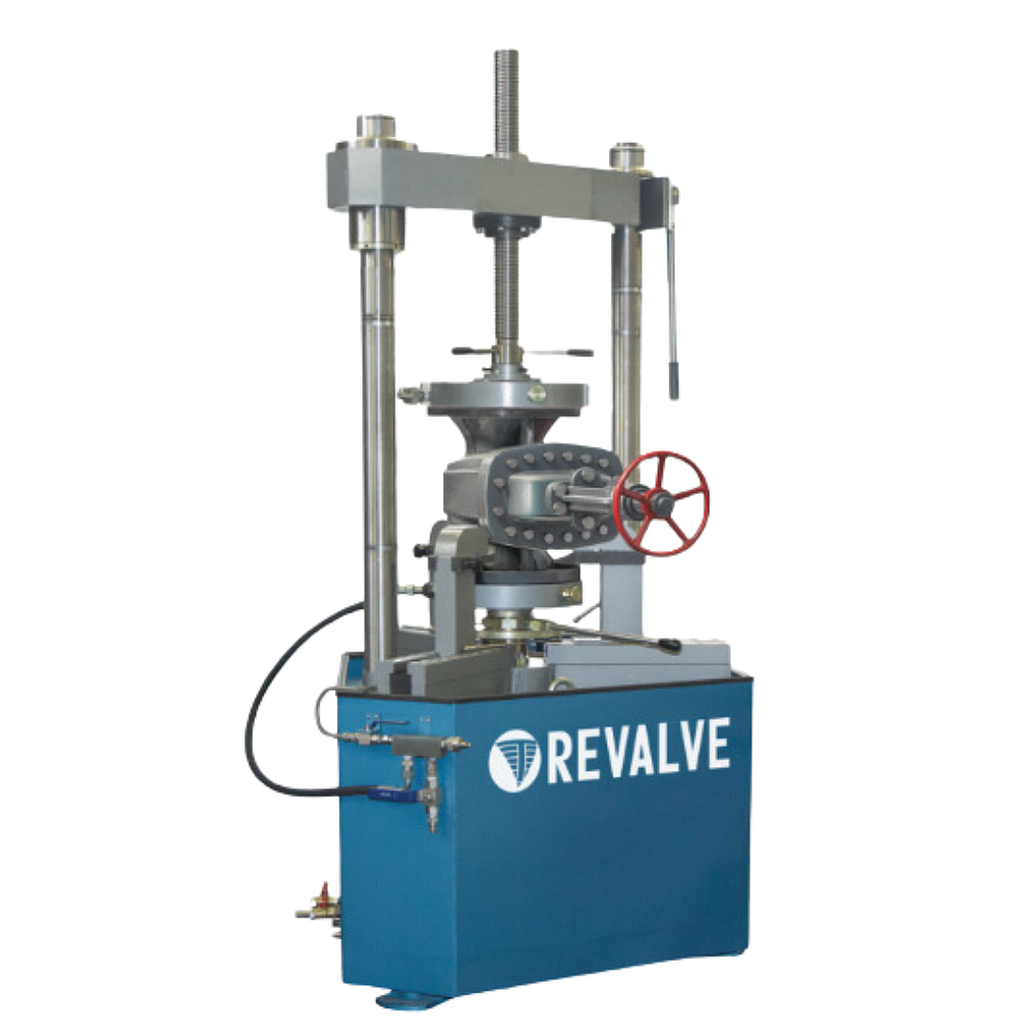

Revalve S-3-600/160 Test benches for shut off & control valves
Manufacturer: Revalve Model: S-3-600/160 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Specifications:
Maximum clamping force: 160t
Diameter of the clamped flange(″): 90/840 (3/33) (min/max), mm
Maximum thickness of clamped flange(″): 90 (3) mm
Distance between test tables(″): 90/1255 (4/50) (min/max), mm
Distance between the columns(″): 900 (35) mm
Power supply: 400/50 V/Hz
Power consumption: 1,1 kW
Overall dimensions (LхWхH)(″): 1730х1677х3970(68x66x156)mm
Weight: 3391kg
Details
- Quality Engagement
- Easy change and return
- Delivery Avaliable
- Favorable payment
