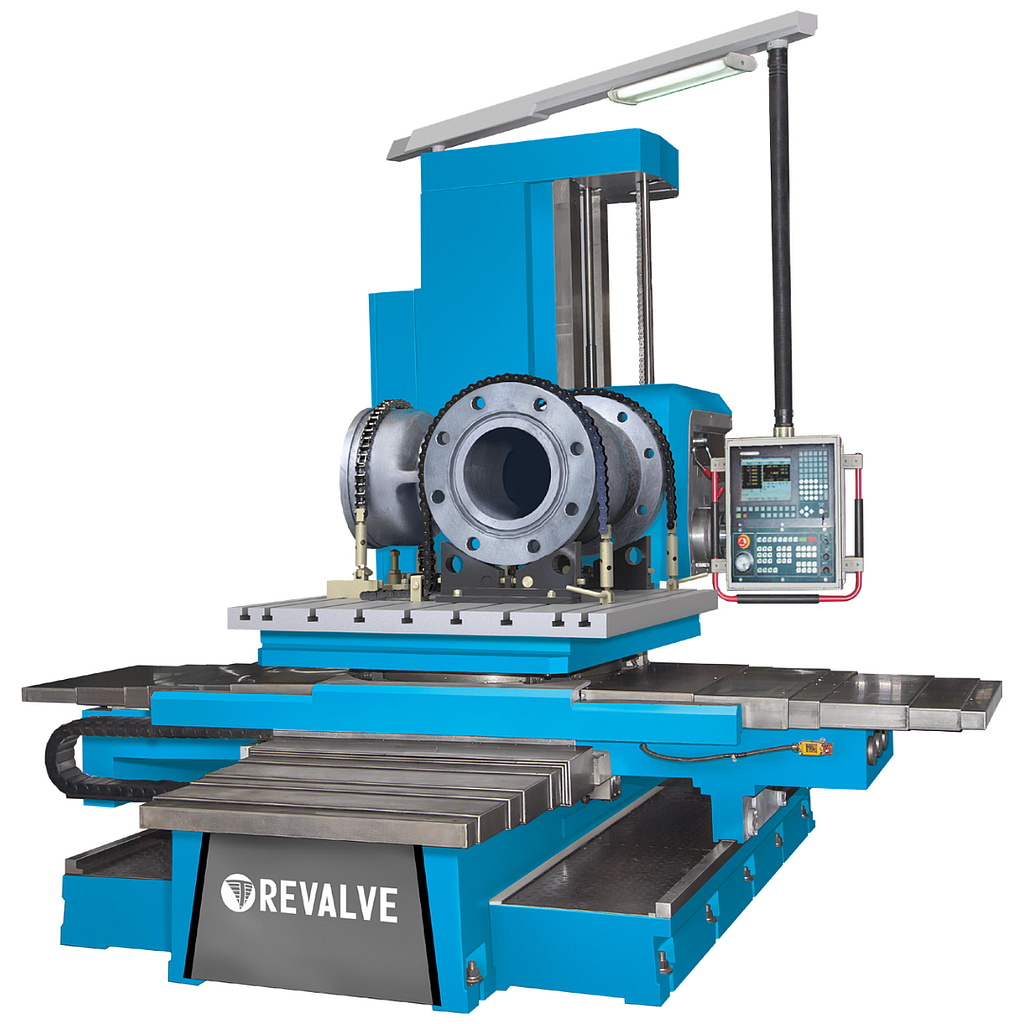

Revalve SR-1200 Specialized boring machine for machining of valve trim components

Specifications:

Valve range, DN (″): 600...1100mm

Spindle diameter (″): 130 (5)mm

Cone cavity of the spindle ISO:  50

Table transverse travel(″):  2000 (79)mm

Table longitudinal travel (″):  1600 (63)mm

Support motion(″):  170 (7)mm

Vertical travel of spindle head(″):  2000 (79)mm

Table working surface(″):  1800х1800 (71х71) mm

Maximum weight of processed part: 25000 (55116) kg (lbs)

Power consumption, kW: 82

Electric power supply: 400/50 V/Hz

Weight: 37450 kg

* Upon customer reques
