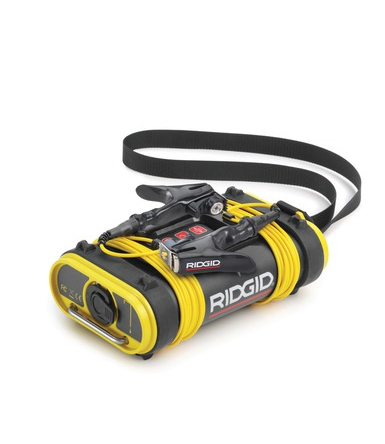

Ridgid ST-305 Line Transmitter (1 kHz, 8 kHz, 33 kHz, 262 kHz)
Manufacturer: Ridgid Model: ST-305 P/N: 21898 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Direct Connect: 1 kHz, 8 kHz, 33 kHz, 262 kHz.
Induction: 1 kHz, 8 kHz, 33 kHz, 262 kHz.
Weight:
+ Without batteries: 1.6 lb (0.772 kg)
+ With batteries: 2.5 lb (1.1 kg)
Dimensions:
+ Depth: 4.7 in (11.9 cm)
+ Width: 7.75 in (19.6 cm)
+ Height: 3 in (7.6 cm)
Power Source: 6 C-Cell Batteries, Alkaline or rechargeable
Power Settings: 25 mA to 5 W
Output Power: Nominal 5 watts
Default Settings: 62 V Maximum (RMS), selectable frequencies of 1 kHz, 8 kHz,33 kHz, and262 kHz (93 kHz maximum in Europe).
Standard Equipment
• ST-305
• Direct connect leads and clips
• Operator’s Manual
• 6 C-cell batteries (Alkaline)
