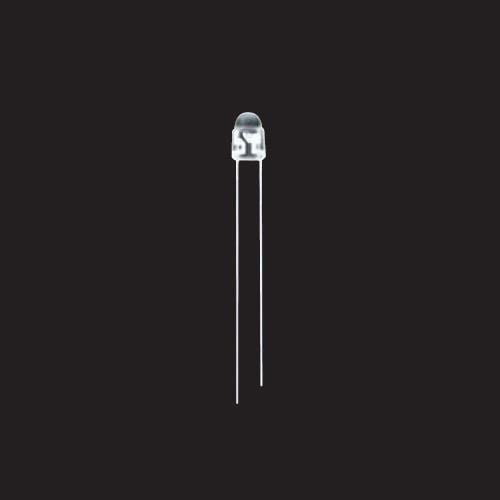

ROHM Semiconductor SLI-343V8R3F Single Color LEDs RED-DIFF COLORED 40 VIEW ANGLE 639NM
Manufacturer: ROHM Semiconductor Model: SLI-343V8R3F - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Height: 5.4 mm
LED Size: T-1 (3 mm)
Lens Color: Red
Lens Shape: Dome
Unit Weight: 100 mg
Power Rating: 54 mW
Configuration: Single
Viewing Angle: 40 deg
Mounting Style: Through Hole
Lens Dimensions: 3.1 mm
Lens Transparency: Diffused
Illumination Color: Red
Luminous Intensity: 220 mcd
If - Forward Current: 20 mA
Vf - Forward Voltage: 2.2 V
Wavelength/Color Temperature: 630 nm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
