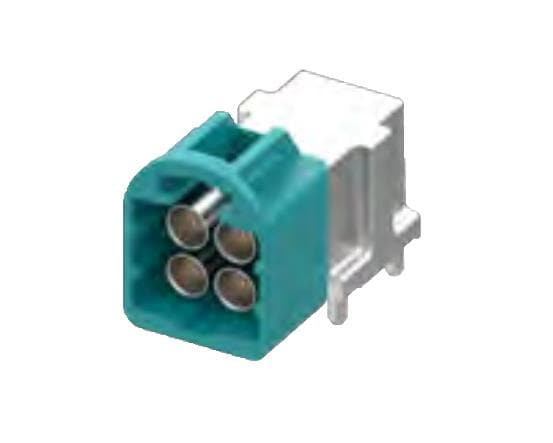

Rosenberger AMS29D-40MZ5-E PCB Connectors Right Angle HFM Quad Plug PCB with Housing; Green
Manufacturer: Rosenberger Model: AMS29D-40MZ5-E - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gender: Plug (Pin)
Polarity: Standard
Frequency: 9 GHz
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: HFM
Body Style: Right Angle
Orientation: Right Angle
Mating Cycles: 25 Cycle
Mounting Style: Through Hole
Voltage Rating: 60 V
Contact Plating: Gold
Contact Material: Bronze
Maximum Frequency: 9 GHz
Minimum Frequency: DC
Termination Style: Solder Pin
Contact Termination: Solder
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 105 C
