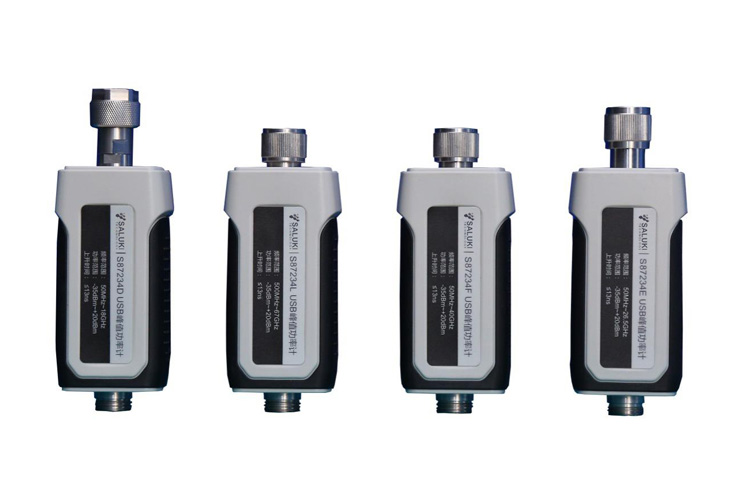

SALUKI S87234L Peak and Average Power Sensor (50 MHz ~ 67 GHz)
Manufacturer: SALUKI Model: S87234L Guarantee: 12 Month - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Frequency Range: 50 MHz to 67 GHz
Power Range:
Normal: -30dBm ~ +20dBm (50MHz – 500MHz); -35dBm ~ +20dBm (≥ 500MHz)
Avarage: -45dBm ~ +20dBm
Rise/Fall Time: ≤ 13ns
Sampling Rate: 80M Samples/sec, continuous
Video Bandwidth: ≥30MHz
Pulse Width: Minimum 50ns
Accuracy: ≤±0.33dB (±7.9%)
Maximum SWR:
1.20 (500MHz - 2GHz)
1.26 (2GHz - 18GHz)
1.35 (18GHz - 26.5GHz)
1.50 (26.5GHz - 40GHz)
1.70 (40GHz - 67GHz)
Connector: 1.85mm(m)
Dimension (W×H×D): 124.7mm × 52.0mm × 34.0mm
Weight: < 0.3kg
