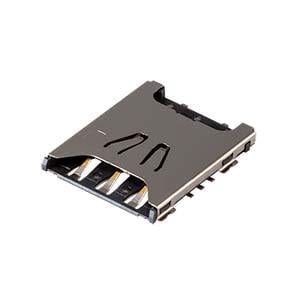

Same Sky (formerly CUI Devices) NSIM-11-B Card Connectors 6 Positions, Push In, Pull Out, SMT, 1.13 mm Height Above Board,
Manufacturer: Same Sky (formerly CUI Devices) Model: NSIM-11-B - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Color: Black
Pitch: 2.54 mm
Height: 1.13 mm
Length: 12.3 mm
Card Type: NanoSIM
Latch Color: Silver
Orientation: Horizontal
Mating Cycles: 5000 Cycle
Mounting Type: SMD/SMT
Current Rating: 500 mA
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Voltage Rating: 30 V
Contact Plating: Gold
Contact Material: Copper
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Number of Contacts: 6 Contact
Insulation Resistance: 1 GOhms
Insertion - Extraction Style: Push-Pull
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
