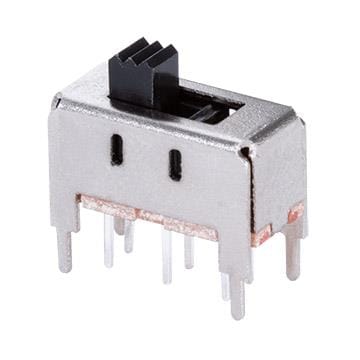

Same Sky (formerly CUI Devices) SLW-141165-3A-N-D Slide Switch 14.2 x 11.4 x 6.7 mm, 3 mm Raised Slide Actuator, Through Hole
Manufacturer: Same Sky (formerly CUI Devices) Model: SLW-141165-3A-N-D - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Life: 10000 Cycle
Travel: 4 mm
Actuator: Knob
Illuminated: Non-Illuminated
Contact Form: DPDT
Current Rating: 300 mA
Mounting Angle: Vertical
Mounting Style: PCB Mount
Actuator Length: 3 mm
Contact Plating: Silver
Switch Function: ON - OFF - ON
Contact Material: Copper
Actuator Material: Polyamide (PA66), Nylon 6.6
Termination Style: Through Hole
Voltage Rating DC: 50 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
