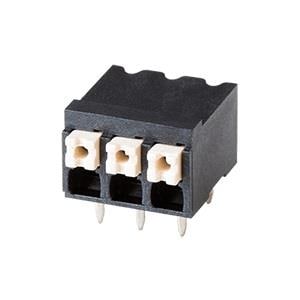

Same Sky (formerly CUI Devices) TBLH10-381-08BK Fixed Terminal Blocks Screwless, High Temperature, 3.81 mm pitch, Black with Gray Button
Manufacturer: Same Sky (formerly CUI Devices) Model: TBLH10-381-08BK - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Color: Black
Pitch: 3.81 mm
Height: 8.5 mm
Length: 30.87 mm
Current Rating: 10 A
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Voltage Rating: 300 V
Wire Gauge Max: 16 AWG
Wire Gauge Min: 24 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Connection Method: PCB Mount
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
