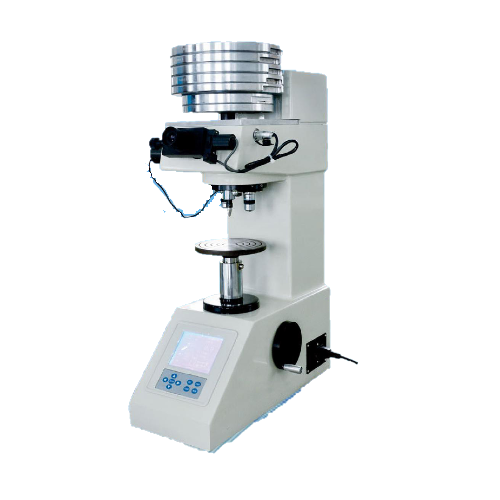

Samyon HV-10B Low Load Vickers Hardness Tester (30-3000HV)

Feature & Use:

 Automatic testing process, no human operating error

 Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92

 It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.



Specifications:

   Measuring range: 30-3000HV

   Test force: 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07N

                    (0.5, 1, 2, 2.5, 3, 5, 10kgf)

   Max. height of test piece: 130mm

   Depth of throat: 100mm

   Magnifications of the measuring system: 500X, 125X

   Min. scale value of the optical micrometer: 0.25μm

   Power supply: 220V AC or 110V AC, 50 or 60Hz

   Dimensions: 438 x 382 x 708mm

   Weight: approx. 70kg



Standard accessories:

   Coordinate anvil: 1 pc.

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Diamond pyramid penetrator: 1 pc.

   Vickers standardized block: 2 pcs.

   Electronic calculator: 1 pc.
