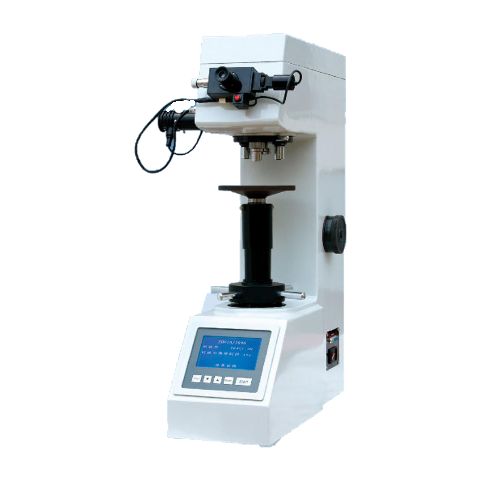

Samyon HVS-50 Digital Display Vickers Hardness Tester (5-2900HV)
Manufacturer: Samyon Model: HVS-50 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Feature & Use:
Frictionless loading shaft, high precision testing force
LCD display, menu operating, complete function with data processing, hardness value conversion and so on
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Specifications:
Measuring range: 5-2900HV
Test force: 9.807, 49.03, 98.07, 196.1, 294.2, 490.3N
(1, 5, 10, 20, 30, 50kgf)
Max. height of test piece: 180mm
Depth of throat: 125mm
Magnifications of the measuring system: 125X, 250X
Min. scale value of the optical micrometer: 0.5μm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 580 x 260 x 730mm
Weight: approx. 90kg
Standard accessories:
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Vickers standardized block: 3 pcs.
Printer: 1 pc.
