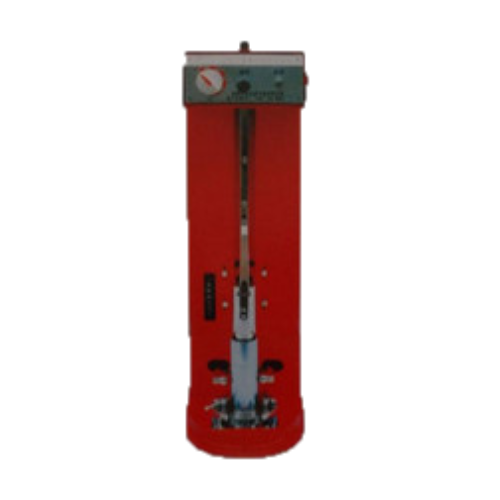

Samyon JDM-1 Electric Relative Density Apparatus (120W)
Manufacturer: Samyon Model: JDM-1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Application:
The Electric Relative Density Apparatus is suitable for measuring maximum density and minimum porosity ratio of the soil with the grain size less than 5mm of non-cohesive soil and the mass of the specimen with the grain size of 2 – 5mm is not more than 15% of total mass of the specimen so as to calculate the relative density of the soil. It consists of drive system, control panel, vibration hammer etc.
Specifications:
1. Mold: 250ml, internal diam: Ø5cm, height: 12.7cm, including sleeve
2. Hammer: hammer mass: 1.25Kg, 32 stroke times per minute
hammer: Ø5cm
3. Drop: 15cm
4. Timing range: 0 – 15minutes
5. Power: 120W
6. Power supply: 220V
