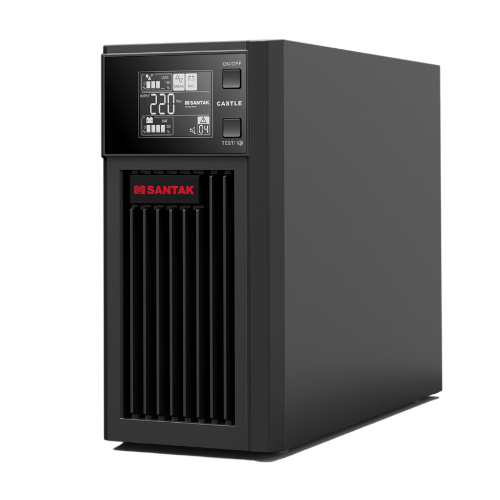

Santak Castle 10K Online UPS (10000 VA, 9000 W)

- Power rating (VA/W): 10000 VA, 9000 W

- Input

+ Input voltage range:   120~275VAC

+ Input frequency range: 40 Hz-70 Hz

+ Input wiring: Single phase with ground

+ Input power factor: ≥0.99

- Output

+ Output voltage: 220 VAC

+ Output voltage tolerance: ±1%

+ Output wiring: Single phase with ground

+ Output frequency rang:  50/60Hz±0.1Hz (battery mode)

+ Output THDV:  <2% (beban linear); <4% (beban non-linear)

+ Overload capability: 1 mnt @ 125%~105% beban

                                    30 dtk @ 150%~125% beban

                                    0.5 dtk @ >150% beban

- Efficinecy

+ Line mode: Up to 94%

+ ECO mode: Up to 98%

- Battery and charger

+ Battery quantity:  16 PCS (Internal)

+ Battery capacity: 12 V/9 AH

+ Recharge current: Standard model 1.2A; Long backup time model 4A;

- Display:

+ LCD+LED: load rating/battery capacity/input/output/operating mode

- Communication and monitoring

+ Communication port:  RS232 standard offer, USB optional

+ Extendable communication card:  Dry Contact Card， USB card, MODBUS card and NMC card are optional

+ Software: Winpower

- Physical parameters

+ Product dimension (W*H*D) mm: 248*500*565

+ Product weight (Kg): 62

- Environment

+ Operating temperature: 0-40ºC

+ Audible noise: <50 dB @ 1 meter 1

- Certifications and standard:  IEC61000, IEC62040,CE
