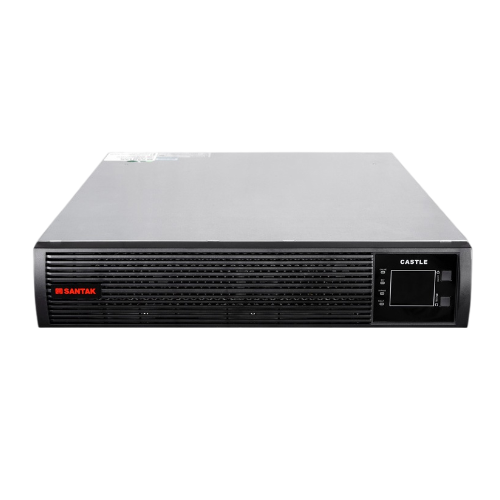

Santak Rack 6K Online UPS (6000 VA, 6000 W)

- Power rating (VA/W): 6000 VA/6000 W

- Input

+ Input voltage range: 110~275 VAC

+ Input frequency range: 40 Hz-70 Hz

+ Input wiring: Single phase with ground

+ Input power factor: ≥0.995

- Output

+ Output voltage: 208/220/230/240 VAC

+ Output voltage tolerance: ±1%

+ Output wiring: Single phase with ground

+ Output connection: 2*IEC, 1*Terminal Block

+ Output frequency rang:  50/60Hz±0.1Hz (battery mode)

+ Output THDV: <1% (linear load) <5% (non-linear load)

+ Output waveform: Pure sinewave

+ Overload capability: 10min @ 105~125% load

                                    30S @ 125~150% load

                                    0.5S @ >150% load

- Efficinecy

+ Line mode: Up to 95%

+ ECO mode: Up to 98%

- Battery and charger

+ Battery quantity: 16PCS default, 16/17/18/19/20 adjustable

+ Recharge time to 90% battery capacity: 3 hours

+ Backup time: >4min @ 100% load >11min @ 50% load

+ Recharge current: 1.4A default, 0-4A adjustable

- Display:

+ LCD+LED: load rating/battery capacity/input/output/operating mode

- Communication and monitoring

+ Communication port: RS232, USB+EPO, Dry in/Dry out configurable.

+ Extendable communication card: Dry Contact Card, MODBUS Card, NMC Card are optional

+ Software: Winpower

- Physical parameters

+ Product dimension (W*H*D) mm: 438* 86.3* 573mm (UPS)

                                                          438*129* 593mm (EBM)

+ Product weight (Kg) : 14 (UPS) / 46 (EBM)

- Environment

+ Operating temperature: 0-40ºC

+ Operating humidity: 0-95% (non-condensing)

- Standar: IEC62040, IEC60950
