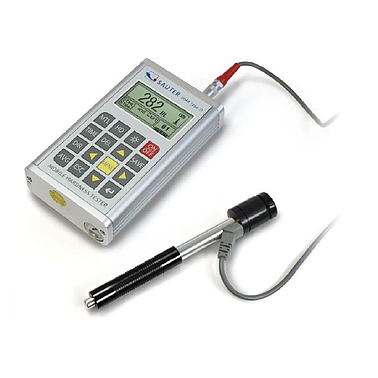

SAUTER HMR Mobile Leeb hardness tester
Manufacturer: SAUTER Model: HMR - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Automatic recognition of the impact (rebound) sensor connected to the HMR.
Mobility: The SAUTER HMR. provides a professional and resilient measurement solution wherever required, i.e. production, product control etc.
Measures all metal samples (> 5 kg, thickness > 8 mm)
External impact sensor standard (Type D)
All measurement directions possible (360°) thanks to an automatic compensation function
Software and PC connection cable standard
Standard block for calibration with defnied HLD value standard
Support rings for bended testing samples available on request, on request
Robust metal housing
Delivered in a hard carrying case
Internal memory for up to 100 data groups, with up to 33 values per group forming the average value of the group
Mini statistics function: displays the measured result, the average value, the impact direction, date and time
Measurement value display: Rockwell (B & C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)
Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
Precision: ± 1 % at 800 HLD
Measuring range tensile strength: 374 - 2652 MPa (steel)
Minimum sample radius (concave/convex): 50 mm (with support ring: 10 mm)
Min. sample weight on a solid and stable support:
Sensor C: 1,5 kg
Sensor D...: 5 kg
Sensor G: 15 kg
Minimum sample thickness:
Sensor C: 1 mm
Sensor D...: 8 mm
Sensor G: 10 mm
dimensions: 132 mm x 76 mm x 32 mm
weight: 345 g
