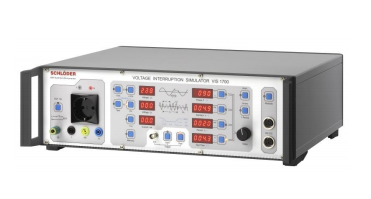

Schloeder VIS 1700 Voltage interruption simulator (360 VDC, 280VAC, 16A)
Manufacturer: Schloeder Model: VIS 1700 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Nominal voltage AC: max. 280 V
Nominal voltage DC: max. 360 V
Nominal currents
Voltage dips AC/DC: max. 16 A / 8 A
Nominal currents
Voltage fluctuation:AC/DC max. 16 A / 8 A (with second power source!)
Nominal currents
Voltage fluctuation
AC/DC max. 16
Phase angle: φ = 0 - 359°, step 1°
Duration: t1 0,1 ms - 9980 ms
Period t2: synchronous: 5,0 ms - 9990 ms
sync: 20 ms - 9980 ms
Test time: 0,1 sec - 9990 sec, single event and duration
Interface: RS-232
Connections: BNC (voltage, current and trigger)
Test sample connection: Schuko socket additional laboratory sockets
Phase display: LED red; LED green
Operating temperature: 0 - 40° C
Dimensions: 19" housing (3 RU)
Weight: 13 kg
Supply voltage: 100-240 V / 47-63 Hz /80 VA
