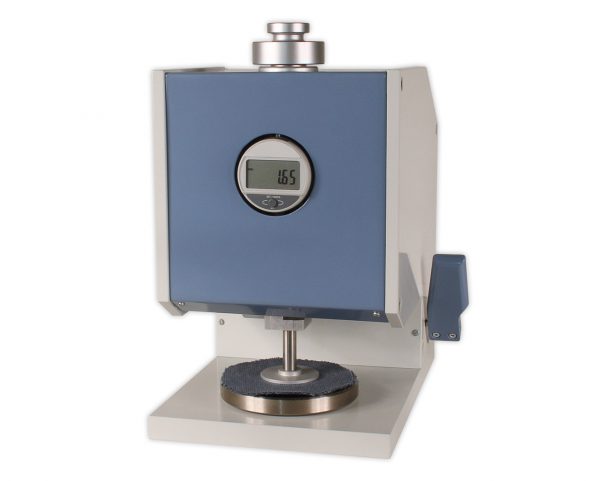

SCHMIDT D-2000-NW Thickness Gauge (0 – 10 mm)
Manufacturer: SCHMIDT Model: D-2000-NW - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Standard: EN ISO 9073-2
Application: Non-woven textiles
Feeler (Ø mm): 56.42
Feeler (cm²): 25
Test Pressure: 0.5 kPa and 1 kPa
Measuring range: 0 – 10 mm, Option: 0 – 25 mm (Code E25) or 0 – 50 mm (Code E50)
Resolution: 0.01 mm, Option: 0.001 mm (Code R)
Accuracy: ±0.02 mm, Option: ±0.002 mm (Code R)
Measuring depth: 110 mm (centre of the stamp)
Measuring system: Capacitive -> Sylvac
Display: LCD 6 digit, 8.5 mm high
Measuring unit: mm or inch (switchable)
Feeler shape and surface pressure: According to DIN, EN, ISO and ASTM standards
Output signal: USB (Sub-D9 socket)
Temperature range: 10 – 45 °C
Air humidity: 85 % RH, max.
Dimensions: 300 x 240 x 300 mm (LxWxH)
Weight, net (gross): Approx. 23 kg (26 kg)
Special Features
Thickness gauge D-2000 is working according international DIN, EN, ISO and ASTM standards. They measure with highest accuracy.
The instruments are mainly designed for laboratory use
Different measuring feelers and additional weights are available depending on the application area and test standard; on request different standards can be combined in one instrument
The standard measuring range is 0 – 10 mm; 25 and 50 mm are optional available
The resolution is 0.01 mm; as option 0.001 is available
Thickness gauge D-2000 with USB interface (Sub-D9 socket) and Sub-D9/USB adapter cable for data transfer
The feeler is move up and down by using a mechanical plunger
Robust, bend-resistant device construction, encapsulated against external influences, e.g. shock; this ensures maximum measurement and repeatability
