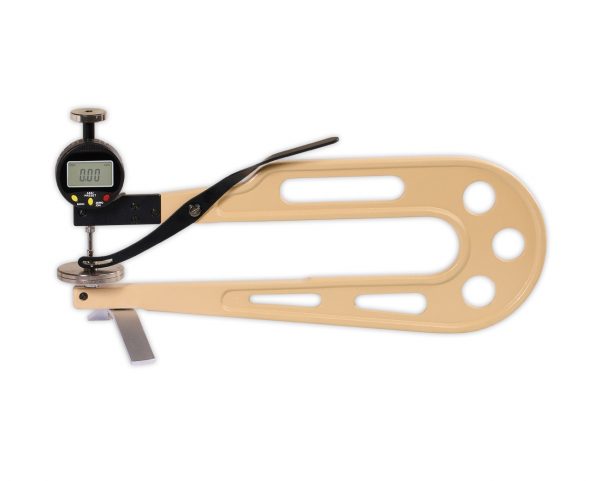

SCHMIDT DD-300-V Thickness Gauge (0 – 10 mm/ 0.4 Inch)
Manufacturer: SCHMIDT Model: DD-300-V - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Standard: similar to DIN EN ISO 9073-2
Measuring Range: 0 – 10 mm/ 0.4 Inch
Depth of jaw: 300 mm
Application: Standard fleece
Feeler (Ø in mm): 56.42
Feeler (cm²): 25
Pressure: 0.5 kPA
Measuring range: 0 – 10 mm / 0 – 0.4 inch (option 0 – 25 mm / 0 – 1 inch)
Resolution: 0.01 mm / 0.0005 inch
Depth of jaw: 300 mm
Display: LCD 4 digit, 8 mm high
Weight, net (gross): Approx. 1050 g (1350 g)
Special Features
Thickness gauge DD-300 features an easy to read digital display along with the high accuracy
The thickness gauge is available with different feelers and measuring pressure according the material to be used
Standard measuring range up to 10 mm; optional 25 mm (code E) is available
The instrument is equipped with a swing-out foot for on-table operation
USB interface for data transfer to PC
Opening by lifting device (lever) – self closing thickness gauge DD-300
