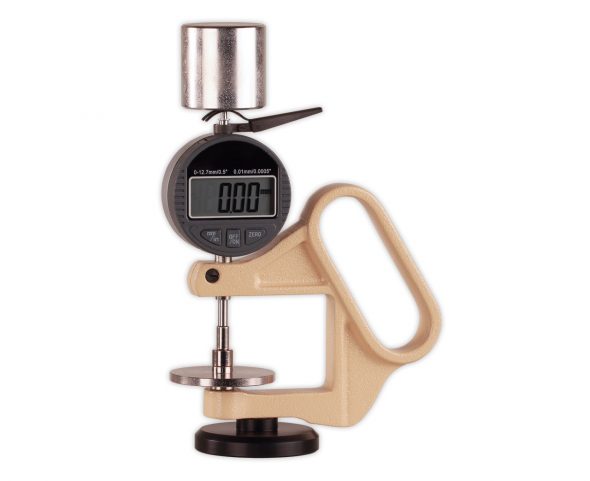

SCHMIDT DD-50-L Thickness Gauge (0 – 10 mm/ 0.4 Inch)
Manufacturer: SCHMIDT Model: DD-50-L - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Standard: similar to DIN EN ISO 2589
Measuring Range: 0 – 10 mm/ 0.4 Inch
Depth of jaw: 50 mm
Application: Leather
Feeler (Ø in mm): 10
Feeler (cm²): 0.785
Pressure: 49.1 kPA
Measuring range: 0 – 10 mm / 0 – 0.4 inch (option 0 – 25 mm / 0 – 1 inch)
Resolution: 0.01 mm / 0.0005 inch
Depth of jaw: 50 mm
Display: LCD 4 digit, 8 mm high
Data output: USB
Dimensions: 103 x 65 x 145 mm (LxWxH)
Weight, net (gross): Approx. 500 g (1100 g)
