SCHMIDT DM-840 Thickness Gauge (100 mm)
Manufacturer: SCHMIDT Model: DM-840 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resolution: 0.1 mm
Measuring range: 100 mm
Depth of jaw: 400 mm
Measuring pressure: 2 N
Feeler shape: A/B/C/G/H
Measuring principle: Self closing
Weight, net (gross): Approx. 1400 g (1450 g)
Details
Special Features

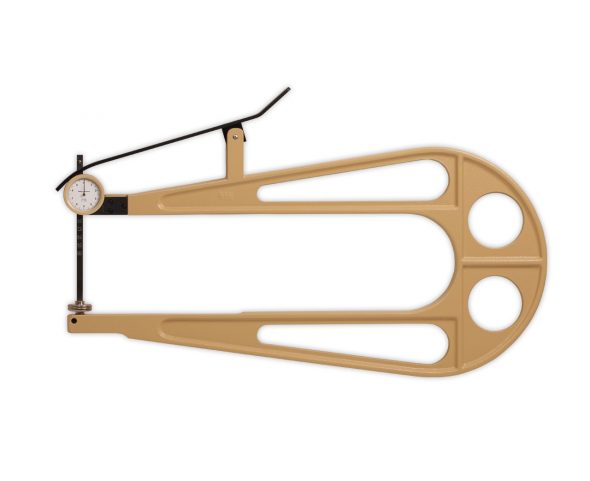

Thickness gauge DM-840 features an easy to read analog display along with the high accuracy
The DM-840 model is available with 5 different feelers, which can be found below
Measuring by spring force of 2 N
Opening by lifting device – self closing thickness gauge DM-840
Thickness gauge is optional available with big foot (Code F) for on table use
