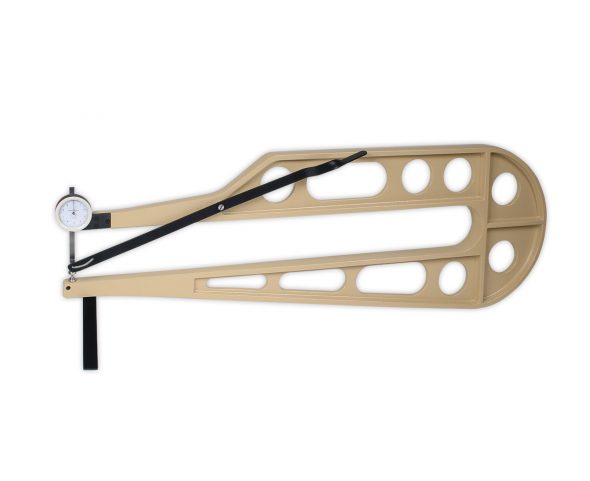

SCHMIDT DM-865-1 Thickness Gauge (50 mm)
Manufacturer: SCHMIDT Model: DM-865-1 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Resolution: 0.1 mm
Measuring range: 50 mm
Depth of jaw: 650 mm
Measuring pressure: 2 N
Feeler shape: A/B/C/G/H
Measuring principle: Self closing
Weight, net (gross): Approx. 1850 g (1950 g)
Special Features
Thickness gauge DM-865-1 features an easy to read analog display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force of 2 N
Opening by lifting device – self closing thickness gauge DM-865-1Dickenmesser mit Abhebevorrichtung
Thickness gauge is optional available with big foot (Code F) for on table use
