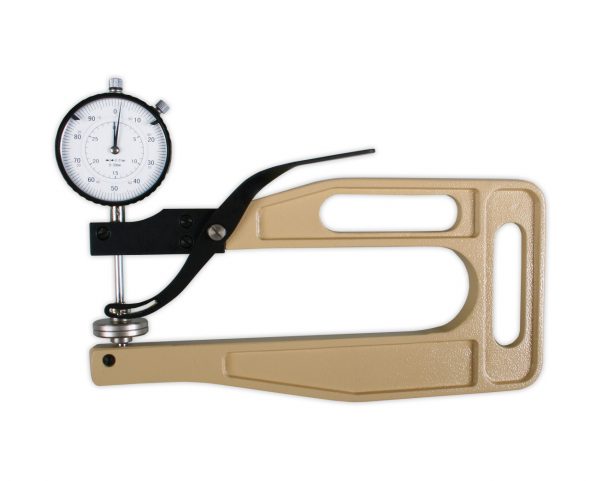

SCHMIDT DMH-820-1 Thickness Gauge (25 mm)
Manufacturer: SCHMIDT Model: DMH-820-1 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resolution: 0.01 mm
Measuring range: 25 mm
Depth of jaw: 200 mm
Measuring pressure: 1 N
Feeler shape: A/B/C/G/H
Measuring principle: Self closing
Weight, net (gross): Approx. 700 g (750 g)
Special Features
Thickness gauge DMH-820-1 features an easy to read analog display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by spring force of 1 N
Opening by lifting device – self closing thickness gauge DMH-820-1Dickenmesser mit Abhebevorrichtung
Thickness gauge is optional available with big foot (Code F) for on table use
