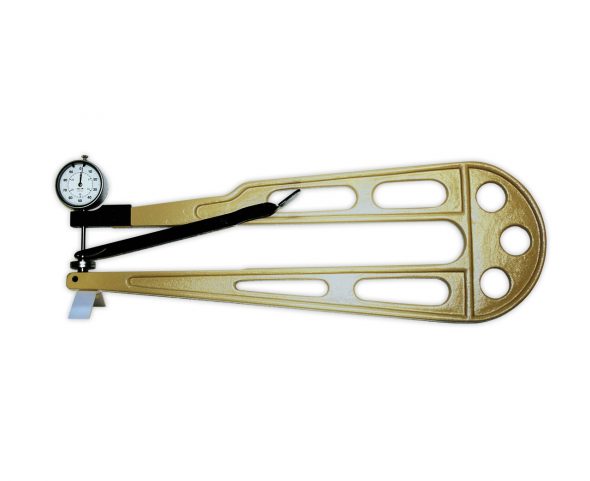

SCHMIDT DMH-850-F Thickness Gauge (10 mm)

Resolution: 0.01 mm

Measuring range: 10 mm

Depth of jaw: 500 mm

Measuring pressure: 1 N

Feeler shape: A/B/C/G/H

Measuring principle: Self closing

Weight, net (gross): Approx. 1450 g (1700 g)


Special Features

Thickness gauge DMH-850-1-F features an easy to read analog display along with the high accuracy

The thickness gauge is available with 5 different feelers, which can be found below

Measuring by spring force of 1 N

Opening by lifting device – self closing thickness gauge DMH-850-1-F

The thickness gauge is equipped with a big foot (Code F) for better operation
