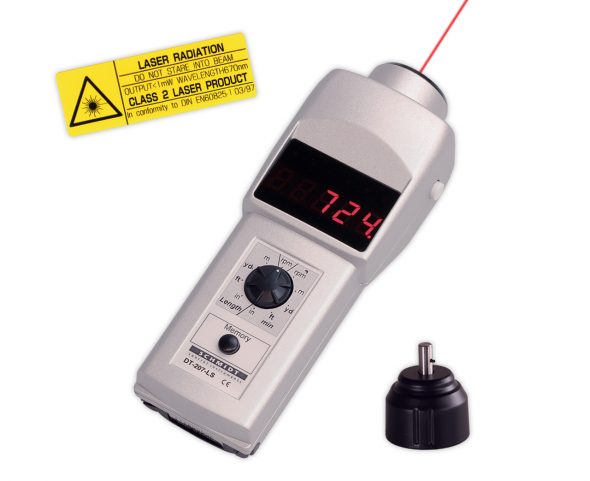

SCHMIDT DT-207LS Tachometer (6 - 25000 rpm or 6 - 99999 rpm)
Manufacturer: SCHMIDT Model: DT-207LS - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring range (floating decimal point):
+ Revolution (contact): 6 – 25000 rpm;
+ Revolution (non-contact): 6 – 99999 rpm;
+ Speed: e. g. 0.02 – 3810 m/min; 0.9 – 99999 m/h; 0.6 – 99999 in/min; 0.05 – 12500 ft/min; 3 – 99999 ft/h; 0.02 – 4167 yd/min; 1.0 – 9999 yd/h; 0.0006 – 142.5 mil/h
+ Length: 0.5 – 99999 cm; 0.005 – 99999 m; 0.1 – 9999.9 in; 0.01 – 99999 ft, 0.005 – 9999.9 yd
Accuracy: 6 – 8300 rpm (±1 rpm) ±1 digit; 8301 – 25000 rpm (±2 rpm) ±1 digit; 25001 – 99999 rpm (±0.01% of reading) ±1 digit
+ Speed and length: ±0.4 % of reading ±1 digit
Measuring units:
+ Revolution: rpm; rph
+ Total rotations (counter): rev
+ Speed: m/min; m/h; ft/min; ft/h; yd/min; yd/h; in/min; in/h; mil/h
+ Length: cm; m; in; ft; yd
Laser, class 2: Output<1 mW, wavelength 670 nm, max. measuring distance 2 m
Memory system: 13 readings (incl. MIN + MAX + last) for 5 min after last use
Resolution: Length: 0.03810 m/impulse (with adapter); Revolution: 8 impulse/revolution (with adapter)
Display: 5 digit, LCD 10 mm
Display update: 1 sec
Over range indicator: Display is flashing
Auto power off: After 10 min of non-use
Power supply: 2 x 1.5 V Type AA, approx. 25 h continuous use
Low battery indicator: ”B” flashes at the display
Temperature range: 5 – 45 °C
Air humidity: 85 % RH, max.
Housing material: Die-cast aluminium
Tripod fixing: 1/4-20 UNC thread
Dimensions: 203 x 60 x 46 mm (LxWxH)
Weight, net (gross): Approx. 350 g (800 g)
