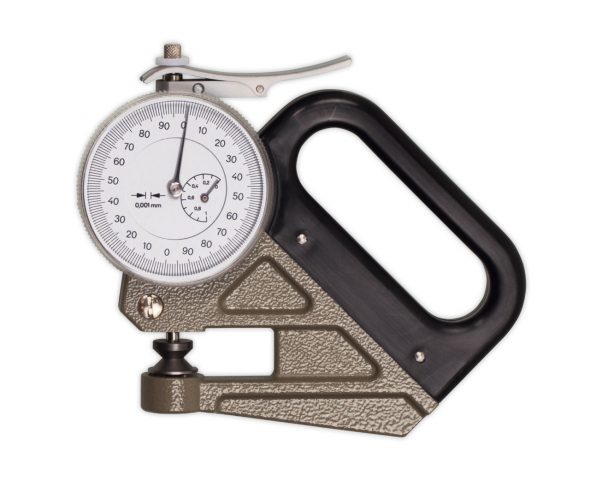

SCHMIDT F-1000-30 Thickness Gauge (0 - 1 mm)
Manufacturer: SCHMIDT Model: F-1000-30 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Display: analog; turn of the dial is 0.2 mm
Resolution: 0.001 mm
Measuring range: 1 mm
Turn of the dial: 0.2 mm
Depth of jaw: 30 mm
Bezel diameter: 54 mm
Feeler shape: F
Measuring principle: Self closing
Weight, net (gross): Approx. 340 g (390 g)
Special Features
Thickness gauge F-1000-30 features an easy to read analog display along with the high accuracy
The thickness gauge is used for foils and thin materials with a resolution of 0.001 mm; turn of the dial is 0.2 mm
The isolated handle ensures highest accuracy (prevents transfer of the heat from the operators hand to the gauge)
The instrument is equipped with a feeler Ø 6.35 mm
Measuring by spring force
Opening by lifting device (lever) – self closing thickness gauge F-1000-30
