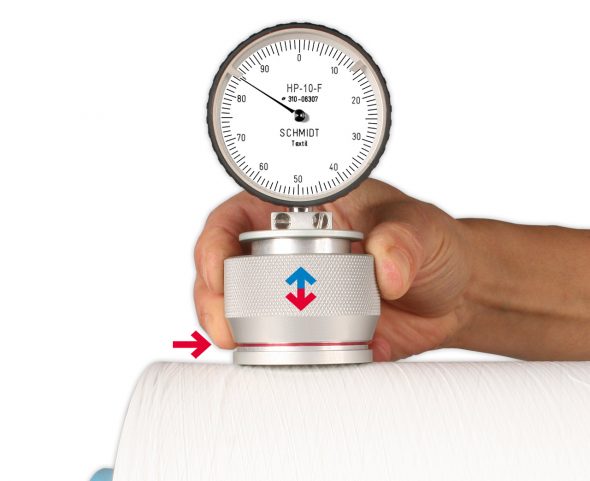

SCHMIDT HP-10-F Yarn Package Hardness Tester
Manufacturer: SCHMIDT Model: HP-10-F - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Indentor: Ball Ø 10 mm
Area of application: For very loosely wound bobbins of thick yarns with more than 400 mm diameter, such as carpet yarns
Depth of indentation*: 0 – 2.5 mm
Test pressure**: Approx. 12.5 N
Measuring spring force*: 0.55 – 8.065 N
Display range: 0 – 100 hardness graduation marks
Scale diameter: 54 mm
Working face flat: 45 mm
Weight, net (gross): Approx. 300 g (500 g)
Dimensions: 50 x 58 x 110 mm (LxWxH)
* Meets requirements of Shore A
** Spring load of outer ring to create constant pressure when outer ring is pulled to red marking
