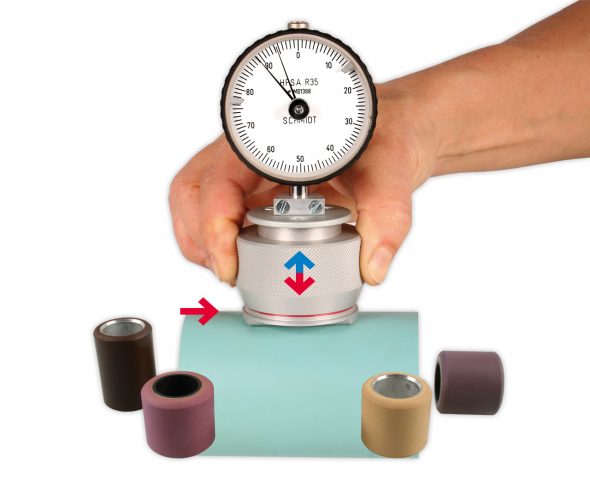

SCHMIDT HPSA-R35-M Shore Durometer (10 – 90 Shore A)
Manufacturer: SCHMIDT Model: HPSA-R35-M - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Application: rubber coated rollers and rollers
Recommended Roller Ø: 40-70 mm
Radius of Flat surface: 35 mm
Shore: Shore A
Indentor: Cone 35°, Ø 1.25 mm
Depth of indentation: 0 – 2.5 mm
Applications range: 10 – 90 Shore A units
Measuring spring force: 0.55 – 8.065 N
Test pressure*: Approx. 12.5 N
Display range: 0 – 100 Shore A units
Scale diameter: 54 mm
Working face radius: 20, 35 oder 55 mm
Base plate: 45 mm Ø
Weight, net (gross): Approx. 300 g (500 g)
Dimensions: 50 x 58 x 110 mm (LxWxH)
