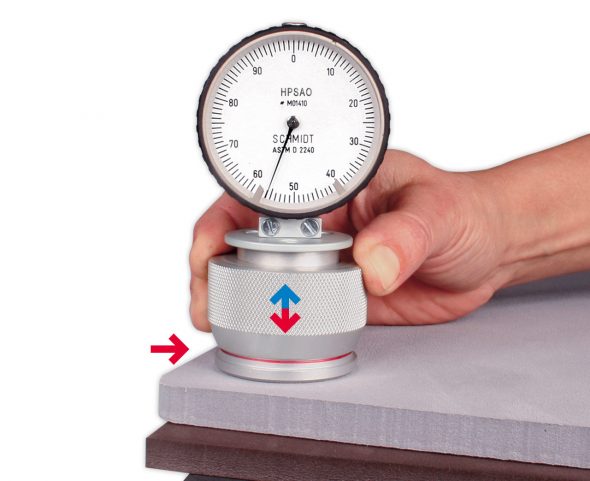

SCHMIDT HPSAO Shore Durometer (< 20 Shore A)

Indentor: Ball Ø 5 mm

Depth of indentation: 0 – 2.5 mm

Typical applications: Foams, steering wheels and inner linings of motor vehicles

Accuracy: ± 1 hardness unit

Application range: < 20 Shore A

Standard: ISO 48-4

Measuring spring force: 0.55 – 8.065 N

Test pressure*: Approx. 12.5 N

Display range: 0 – 100 Shore AO Units

Scale diameter: 54 mm

contact surface: 45 mm Ø

Weight, net (gross): Approx. 300 g (500 g)

Dimensions: 50 x 58 x 110 mm (LxWxH)
