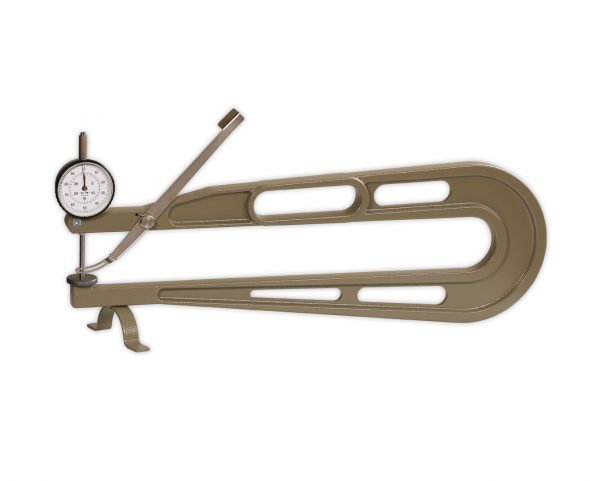

SCHMIDT J-400-30 Thickness Gauge (30 mm)
Manufacturer: SCHMIDT Model: J-400-30 - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resolution: 0.01 mm
Measuring range: 30 mm
Depth of jaw: 400 mm
Bezel diameter: 54 mm
Feeler shape: A/B/C/D/E
Measuring principle: self closing
Weight, net (gross): Approx. 1500 g (1650 g)
Special Features
Thickness gauge J-400-30 features an easy to read analog display along with the high accuracy
The thickness gauge is available with 5 different feelers, which can be found below
Measuring by specified spring force
Opening by lifting device (lever) – self closing thickness gauge J-400-30
Swing out foot for on-table operation
