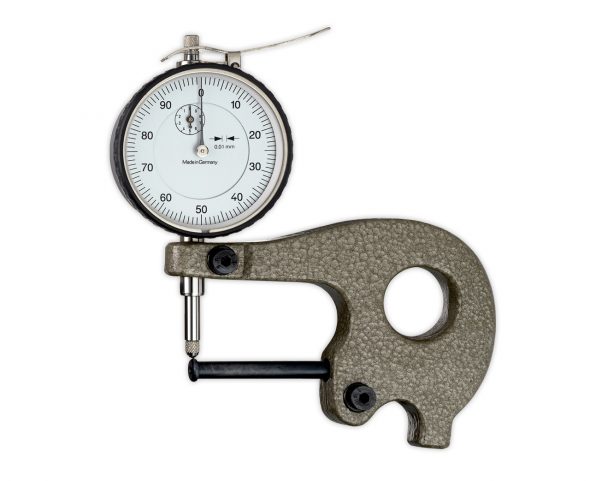

SCHMIDT J-50-W Analog Thickness Gauge for Tube Walls (0 - 10 mm)
Manufacturer: SCHMIDT Model: J-50-W - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resolution: 0.01 mm
Measuring range: 10 mm
Depth of jaw: 50 mm
Bezel diameter: 54 mm
Measuring principle: self closing
Weight, net (gross): Approx. 300 g (350 g)
Special Features
Thickness gauge J-50-W features an easy to read analog display along with the high accuracy. It is used to measure the wall thickness of tubes.
The gauge is equipped with a contact point 6 mm Ø, which has at its end a collar with a radius of 1 mm. This enables it to check tubes,
which still have a burr from parting.
Measuring by specified spring force
Opening by lifting device (lever) – self closing thickness gauge J-50-W
