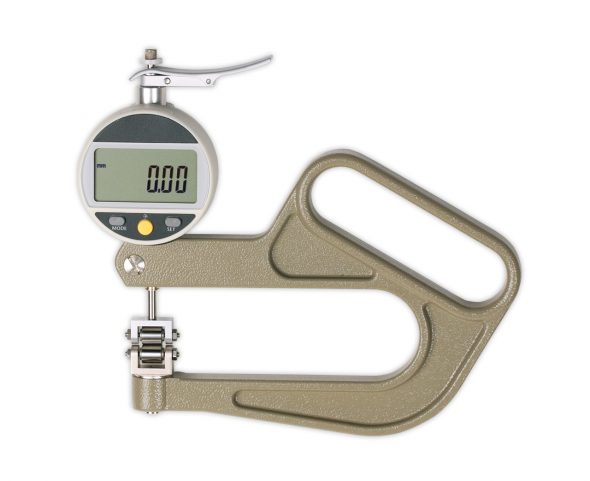

SCHMIDT JD-100-R Thickness Gauge with Rollers (0 – 12.5 mm / 0.5 inch; Flange)

Resolution: 0.01 mm / 0.001 inch

Measuring range: 0 – 12.5 mm / 0.5 inch

Depth of jaw: 100 mm

Measuring principle: Self closing

Display: LCD 6 digit, 8.5 mm high

Measuring system: Capacitive (Sylvac)

Temperature range: 10 – 45 °C

Battery: 3 V Lithium, CR 2032

Data output: USB, RS-232, galvanic isolation

Weight, net (gross): Approx. 390 g (675 g)


Special Features

Thickness gauge JD-100-R features an easy to read digital display along with the high accuracy. It is used to measure the thickness of moving objects as yarns. wires and more.

For better guiding the measured material the lower roller (width 8.7 mm) is standard equipped with flanges, optional available without flange to measure to measure paper, metal, foils and more.

Max. Line speed 150 m/min

Measuring by spring force

Opening by lifting device (lever) – self closing thickness gauge JD-100-R

Dickenmesser mit Abhebevorrichtung

Output signals:


– RS-232
