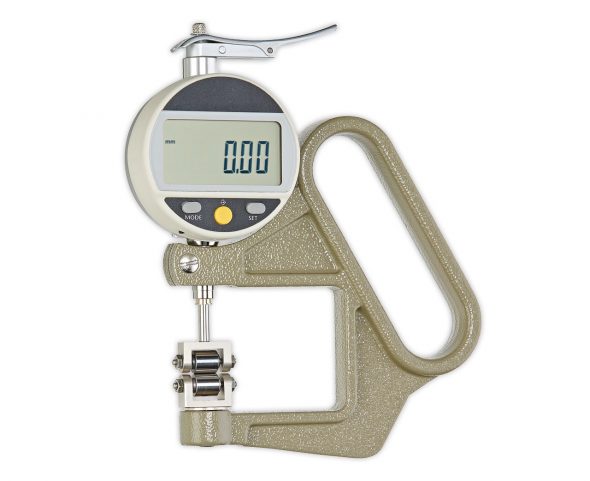

SCHMIDT JD-50-R Thickness Gauge with Rollers (0 – 12.5 mm / 0.5 inch; Flange)
Manufacturer: SCHMIDT Model: JD-50-R - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Resolution: 0.01 mm / 0.001 inch
Measuring range: 0 – 12.5 mm / 0.5 inch
Depth of jaw: 50 mm
Measuring principle: Self closing
Display: LCD 6 digit, 8.5 mm high
Measuring system: Capacitive (Sylvac)
Temperature range: 10 – 45 °C
Battery: 3 V Lithium, CR 2032
Data output: USB, RS-232, galvanic isolation
Weight, net (gross): Approx. 300 g (600 g)
Special Features
Thickness gauge JD-50-R features an easy to read digital display along with the high accuracy. It is used to measure the thickness of moving objects as yarns. wires and more.
For better guiding the measured material the lower roller (width 8.7 mm) is standard equipped with flanges, optional available without flange to measure to measure paper, metal, foils and more.
Max. Line speed 150 m/min
Measuring by spring force
Opening by lifting device (lever) – self closing thickness gauge JD-50-R
Output signals:
– USB
– RS-232
