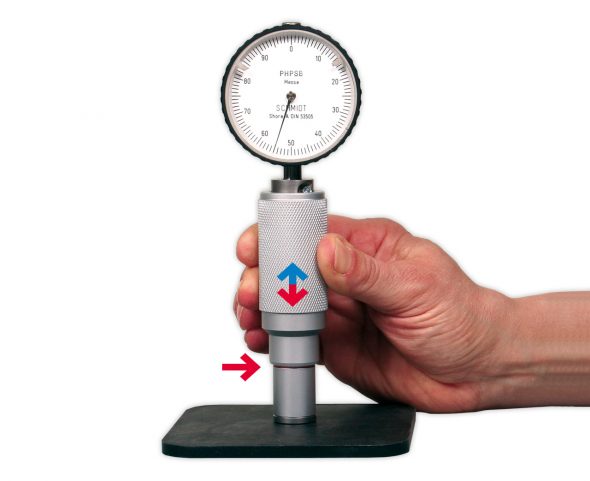

SCHMIDT PHPSB Shore Durometer (10 – 90 Shore B)
Manufacturer: SCHMIDT Model: PHPSB - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Indentor: Tapered pin 30°, 1.25 mm Ø
Depth of indentation: 0 – 2.5 mm
Area of application: Soft elastomers, soft elastic materials, medium fast textiles
Accuracy: ± 1 hardness unit
Application range: 10 – 90 Shore B units
Standard: ASTM D 2240
Measuring spring force: 0.55 – 8.065 N
Test pressure*: Approx. 12.5 N
Display range: 0 – 100 Shore B units
Scale diameter: 54 mm
Working base: 18 mm Ø
Weight net (gross): Approx. 260 g (approx. 500 g)
Dimensions: 30 x 58 x 170 mm (LxWxH)
