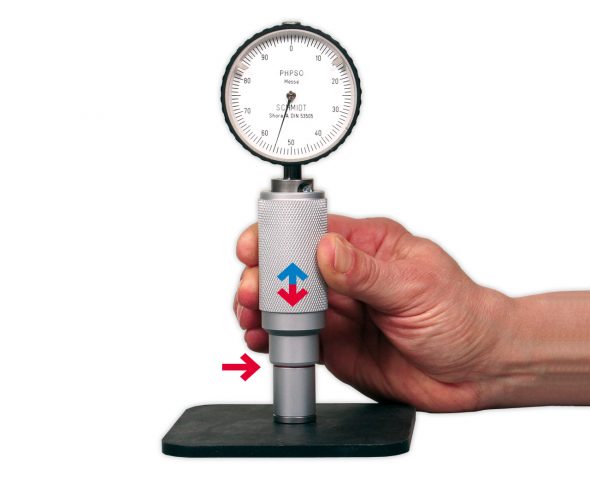

SCHMIDT PHPSO Shore Durometer (20 – 80 Shore O)

Indentor: U-grooved 3/32”

Depth of indentation: 0 – 2.5 mm

Area of application: Soft elastomers, soft elastic materials, medium fast textiles

Accuracy: ± 1 hardness unit

Application range: 20 – 80 Shore O units

Standard: ASTM D 2240

Measuring spring force: 0.55 – 8.065 N

Test pressure*: Approx. 12.5 N

Display range: 0 – 100 Shore O units

Scale diameter: 54 mm

Working base: 18 mm Ø

Weight net (gross): Approx. 260 g (approx. 500 g)

Dimensions: 30 x 58 x 170 mm (LxWxH)
