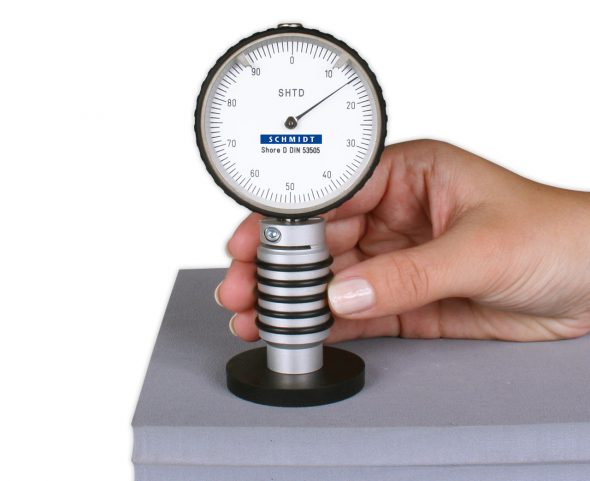

SCHMIDT SHTD Shore Durometer (10 – 90 Shore D)

Indentor: Tapered pin 30°, Ø 1.25 mm

Depth of indentation: 0 – 2.5 mm

Typical applications: Hard rubber, rigid thermoplast, resopal, hard plastic materials

Accuracy: ± 1 hardness unit

Application range: 10 – 90 Shore D

Standard: DIN 53505, ISO 48-4, ISO 868, ASTM D 2240

Measuring spring force: …4.45 – 44.5 N

Display range: 0 – 100 Shore D units

Scale diameter: 54 mm

Working face: 18 mm Ø

Base plate: 24 mm Ø

Weight, net (gross): Approx. 200 g (300 g)

Dimensions: 28 x 58 x 110 mm (LxWxH)

Details

Manual
