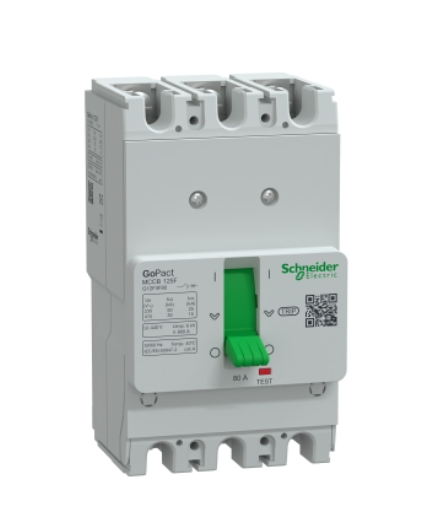

SCHNEIDER G12F3F80 Circuit Breaker, GoPact MCCB (3P, 80A, 30kA)
Manufacturer: SCHNEIDER Model: G12F3F80 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Operating voltage (Ue): 380~415V
Frequency: 50/60Hz (2 operating frequencies switching per minute)
Number of poles: 3P
Rated current (Ie): 80A
[Uimp] rated impulse withstand voltage: 6kV
[Ui] rated insulation voltage: 440V
Short circuit breaking capacity (Icu): 30kA
Trip unit: Thermal trip (TMD)
Control type: Fixed thermal protection
Protection rating: IP20
Mechanical durability: 30,000 cycles
Electrical durability: 8,000 cycles at 415V
Operating temperature: -20 ~ 55ºC
Storage temperature: -35 ~ 85ºC
Product dimensions: 130 x 75 x 60 (mm)
Product weight: 0.7 Kg
