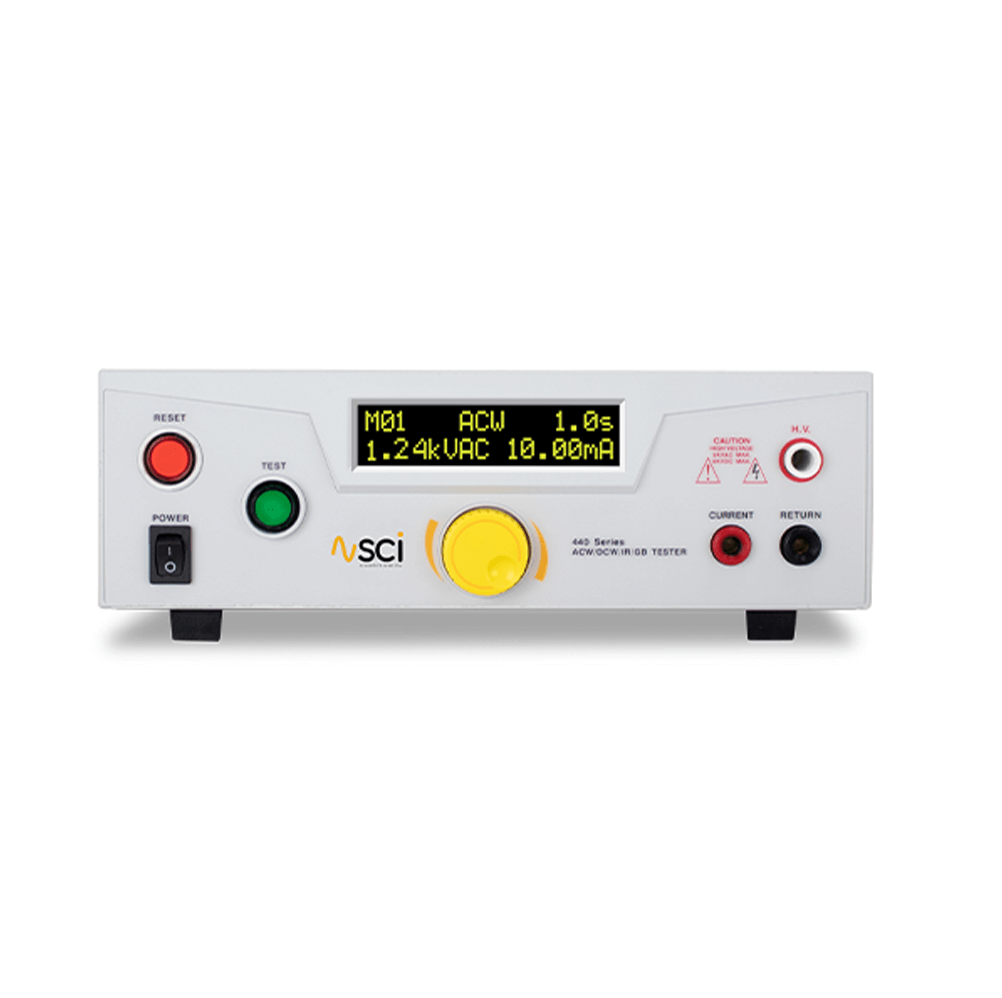

SCI 446 AC & DC hipot, Insulation Resistance and 40A AC Ground Bond (40A AC)

INPUT

- Voltage: 100-120VAC/ 200-240VAC ±10% Auto Range

- Frequency: 50/60 Hz ± 5%

- Fuse: 10A / 250Vac Slow-Blow

AC WITHSTAND VOLTAGE

- Output voltage: 0-5.00 kVAC

  + Resolution: 0.01 kVAC

  + Accuracy: ± (2% of setting + 5V)

- Output frequency: 50Hz/60Hz ± 0.1%, User Selection

- Output Waveform: Sine Wave, Crest Factor = 1.3 - 1.5 and output voltage > 300V

- Hi-Limit AC current: 0.10-20.00mA

  + Resolution: 0.01mA

  + Accuracy: ± (2% of setting + 2 counts)

- Lo-Limit AC current: 0.00-20.00mA

  + Resolution: 0.01mA

  + Accuracy: ± (2% of setting + 2 counts)

- Ramp time: 0.2-180.0s

  + Resolution: 0.1s

  + Accuracy: (0.1% of setting + 0.05 sec)

- Dwell time: 0, 0.2 - 60.0s (0=continuous)

  + Resolution: 0.1s

  + Accuracy: ± (0.1% of setting + 0.05 sec)

DC WITHSTAND VOLTAGE

- Output voltage: 0-6.00 kVDC

  + Resolution: 0.01 kVDC

  + Accuracy: ± (2% of setting + 5V)

- DC output ripple, Vrms: <5 % (6KV / 5mA at Resistive Load)

- Hi-Limit DC current: 0.02 - 5.00mA

  + Resolution: 0.01mA

  + Accuracy: ± (2% of setting + 2 counts)

- Lo-Limit DC current: 0.00-5.00mA

  + Resolution: 0.01mA

  + Accuracy: ± (2% of setting + 2 counts)

- Ramp time: 0.2-180.0s

  + Resolution: 0.1s

  + Accuracy: (0.1% of setting + 0.05 sec)

- Dwell time: 0, 0.2 - 60.0s (0=continuous)

  + Resolution: 0.1s

  + Accuracy: ± (0.1% of setting + 0.05 sec)

INSULATION RESISTANCE

- Output voltage VDC: 100-1000

  + Resolution: 1VDC

  + Accuracy: ± (2% of setting + 5V)

- Hi-Limit resistance, MΩ: 0, 1 - 1000 (0 = OFF)

  + Resolution: 1

  + Accuracy: 100-499V ± (7% of setting+ 2 counts)

- Lo-Limit resistance, MΩ: 1-1000

  + Resolution: 1

  + Accuracy: 500-1000V± (3% of setting+ 2 counts)

- Ramp time: 0.1 or 2.0s

  + Resolution: 0.1s

  + Accuracy: (0.1% of setting + 0.05 sec)

- Delay time: 0, 0.5 - 999.9s (0=continuous)

  + Resolution: 0.1s

  + Accuracy: ± (0.1% of setting + 0.05 sec)

GROUND BOND

- Output AC current: 1.0 – 40.0A

  + Resolution: 0.1A

  + Accuracy: ± (2 % of setting+ 2 counts)

- Output AC voltage: 8V (Fixed)

- Output frequency: 50Hz/60Hz ± 0.1%, User Selectable

- Maximum loading: 1.0–10.0A/0–600mΩ,10.1–30.0A/0–200mΩ,30.1–40.0A/0–150mΩ

GENERAL SPECIFICATIONS

Memories: Allows storage of up to 20 different test programs and a single step mode

Remote I/O:

  + Input: Test, Reset, Interlock & Recall Memory 1 – 6

  + Output: Pass, Fail, Test-in-Process

Interface: USB (Optional)

Dimension: 280mm(W) ×89mm(H) × 400 mm(D)

Weight: 18lbs (8kg)
