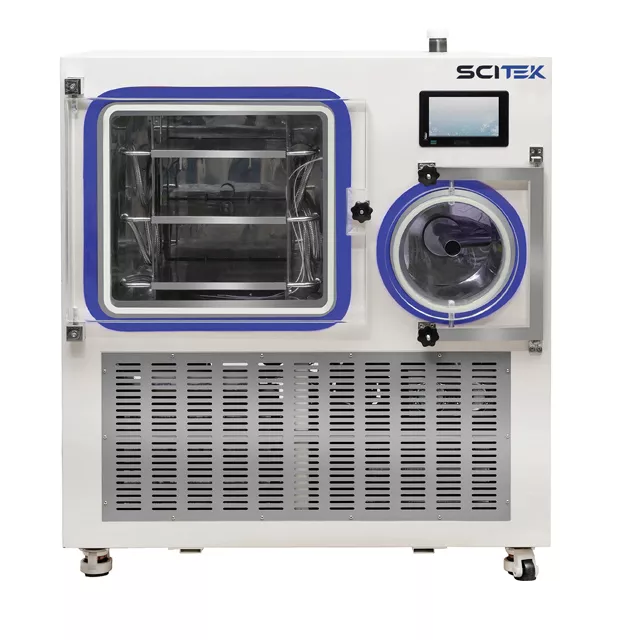

Scitek FD-100S Pilot Freeze Dryer

"Type:   Standard

Freeze Drying Area (m2):  1

Shelf Temperature (℃):        -50~+70

Condenser Temperature (no-loading) (℃):        ≤-80

Vacuum Degree (no-loading) (Pa):        ≤5

Condenser Capacity (L):     35

Ice Condenser Capacity(kg/24h):

Tray(Qty):       4+1

Tray Size (LxWxD)(mm):        550x480x13

Height Between Trays(mm): 90

Total Loading Capacity (L): 20

Temperature Uniformity(Tray) (℃):        ±1

Refrigerant:        CFC-free

Electric Defrosting:        Y

Stoppering Mode:  /

Total Qty. Of Vial Φ22:  2016

Total Qty. Of Vial Φ16:   3944

Total Qty. Of Vial Φ12: 7020

Consumption (kW):      9.5

External Size (WxDxH)(mm):    1633x1027x1612

Shipping Size (WxDxH) (mm)

+Main Body:       1960x1340x1860

+Vacuum Pump:    1010x340x510

Gross Weight(kg):        900"
