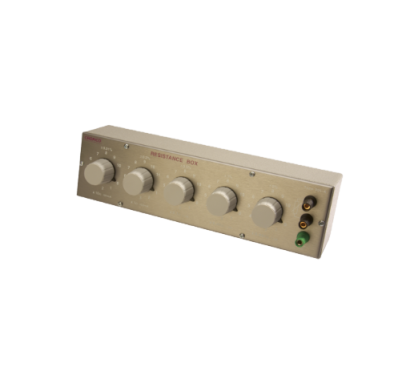

Seaward 005-B Decade Resistance Boxe (10 x 0.01Ω~10 x 100Ω, 60~2000mA, 1112.1Ω)
Manufacturer: Seaward Model: 005-B P/N: 930164 Origin: United Kingdom - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Decade: 10 x 0.01Ω, 10 x 0.1Ω, 10 x 1Ω, 10 x 10Ω, 10 x 100Ω
Accuracy: ±1%, ±0.5%, ±0.2%, ±0.01%
Current Max mA: 2000, 600, 200, 60
No. Decades: 5
Total Resistance: 1,112.10Ω
Resolution: 0.01
Suitable for Pt100 Simulation
Resolution °C when Simulating Pt100: 0.025
Residual Resistance: 1Ω
Description:
005/6/8 High Accuracy Resistance Decade Boxes / 5, 6 & 8 Decades + Special Models for Pt100 Simulation.
A versatile range of resistance decade boxes available in 5, 6 & 8 decades. High Accuracy and wide range 0.001ohm to 11Megohms are combined in a compact lightweight case. The switches have gold plated contacts to ensure a low contact resistance and negligible thermal emf. Some resistance decade box models are particularly suited to Pt100 simulation with resolution as low as 0.001ohm (0.0025°C). High Accuracy Resistance Decade Boxes / 5, 6 & 8 Decades.
The switches have gold plated contacts to ensure a low contact resistance and negligible thermal E.M.F.
Some models employ the Waidner Wolf technique to eliminate any errors due to switch contact resistance and are particularly suited to Pt100 simulation with resolution as low as 0.001Ω (»0.0025°C).
