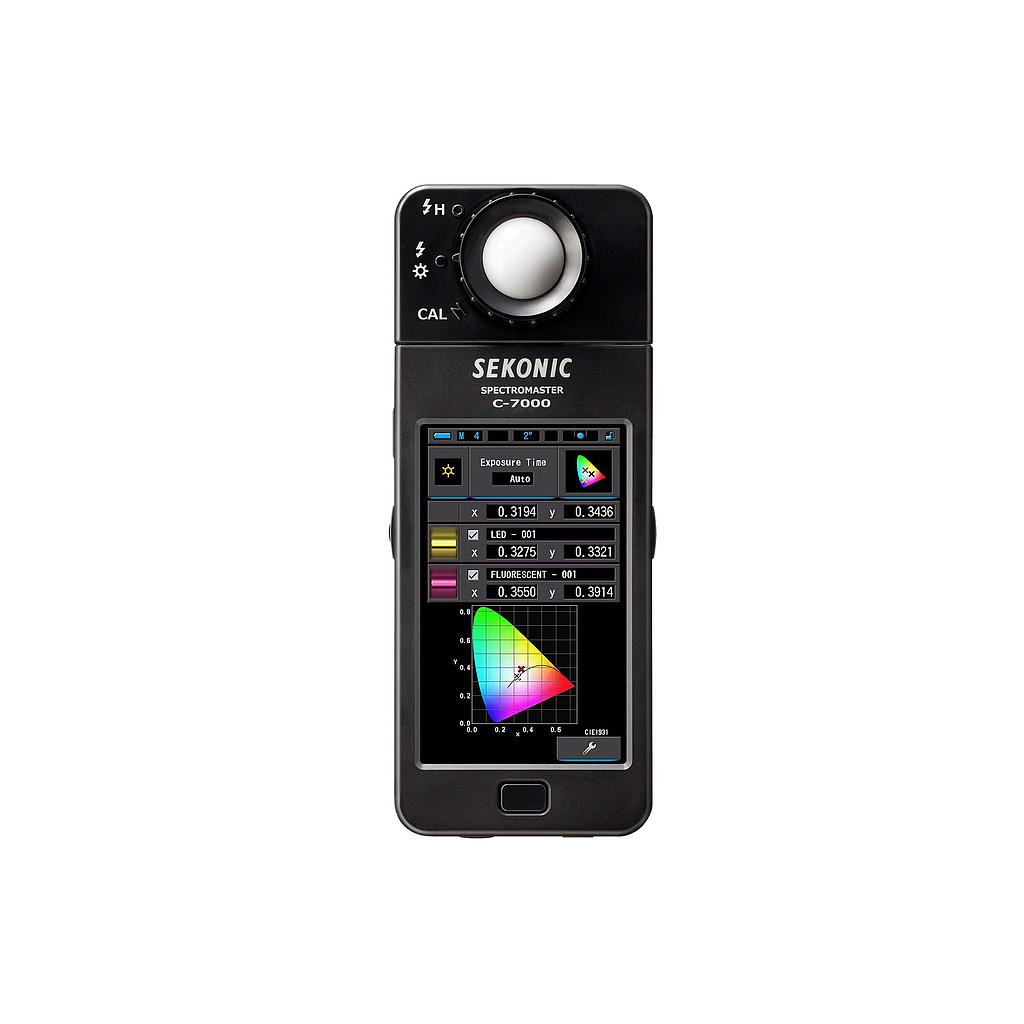

SEKONIC C-7000 SPECTROMASTER Spectrometer (1~200,000 lx, 380nm~780nm)

Sensor: CMOS linear image sensor

Measuring Modes Ambient Light: Ambient light

Measuring Modes Flash: Cordless, Cord-in (PC)

Color Measuring Mode (Display Mode): Text mode, Spectrum mode, Spectrum Comparison mode, CRI mode, CRI Comparison mode, TM-30-18 mode, SSI mode, TLCI/TLMF mode, CIE1931 (CIE1964) mode, CIE1931 (CIE1964) Comparison mode, CIE1976 mode, CIE1976 Comparison mode

Measuring Range (ISO 100) Ambient Incident Light: 1 to 200,000 lx *

0.1 to 18,600 fc * Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments” * DIN 5032 Part 7 Class C

Measuring Range Flash Incident Light: 20 to 20,500lx・s; 1.86 to 1,900 fc・s

Spectral Wavelength Range: 380nm to 780nm

Color Measuring Range Ambient Light: 1,563 to 100,000K

Color Measuring Range Flash Light: 2,500 to 100,000K

Color Measuring Units Color Rendering Properties: CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF

Color Measuring Units Color Parameters: Correlated Color Temperature (Tcp),Deviation (⊿uv ), Tristimulus value (XYZ / X10Y10Z10), CIE1931/1964 (xyz / x10y10z10), CIE1976 (u’v’ / u’10v’10 ),

Color Measuring Units (Industrial): Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD,

Shutter Speeds Range (Ambient Light): Auto - Max.: 15 sec., Min.: 0.5 sec. Manual - 0.1s, 1sec.

Shutter Speeds Range (Flash Light): 1 to 1/500 sec. (in 1 step)

Operating Temperature: -10 to 40 deg. C

Storage Temperature: -10 to 60 deg. C

Power source: 1.5V x 2 (AA battery), USB bus-power

LCD: 4.3" color dot matrix touch panel LCD

Weight (KG): 0.23

Dimensions DxWxH (cm): 18.30 x 7.30 x 2.70

Item Includes

Sekonic C-7000 SpectroMaster Color Meter, CD-ROM, Start-up Guide, Soft Case, Strap, Safety Precaution
