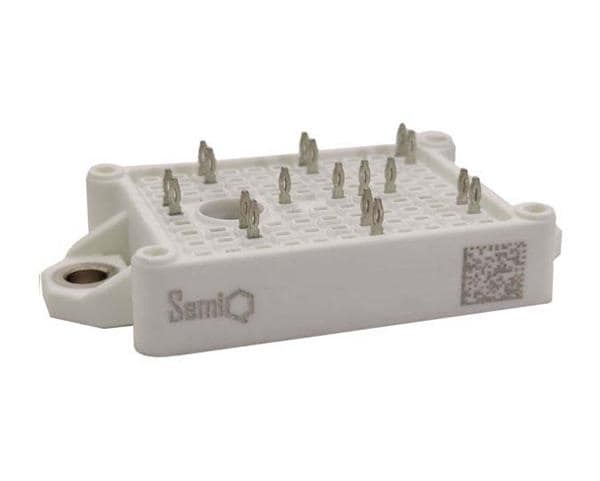

SemiQ GCMX010A120B2B1P Half-Bridge SiC 1200V 10mohm MOSFET Half-Bridge Module
Manufacturer: SemiQ Model: GCMX010A120B2B1P - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Fall Time: 22 ns
Rise Time: 13 ns
Technology: SiC
Mounting Style: Screw Mount
Transistor Polarity: N-Channel
Vgs - Gate-Source Voltage: - 5 V, + 20 V
Typical Turn-On Delay Time: 40 ns
Typical Turn-Off Delay Time: 75 ns
Id - Continuous Drain Current: 214 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 40 C
Rds On - Drain-Source Resistance: 9 mOhms
Vds - Drain-Source Breakdown Voltage: 1.2 kV
Vgs th - Gate-Source Threshold Voltage: 1.8 V
