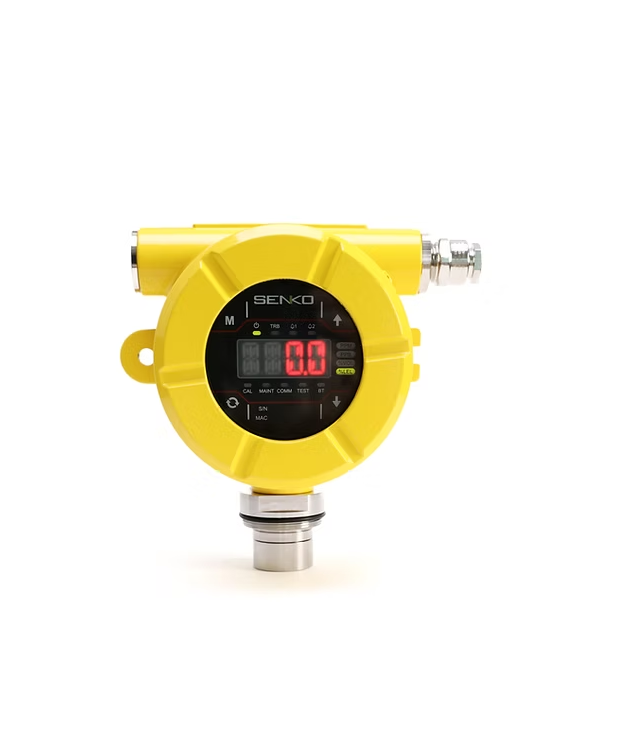

SENKO SI-200E CO Fixed Gas Detector (0~500ppm CO)
Manufacturer: SENKO Model: SI-200E CO P/N: ABA127004 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gas: CO
Sensor: Electrochemical
Range: 0~500ppm
A1: 30ppm
A2: 60ppm
Resolution: 1ppm
Measuring Type: Diffusion Type
Dimension: 169(W) x 188.5(D) x 107(H)mm
Weight: 2.4kg
Measuring Value Display: FND, Gas Concentration, Alarm, Device Faulty
Relay: Low Alarm, High Alarm, Fault Alarm (Rated 2.0A @30Vdc)
Analog Output Signal: 4-20mA
Digital Communication: RS-485
Operating Temperature: -40°C ~ +60°C
Control/Set: 4 Button & RS485 & Bluetooth
Remote Interface: RS-485 Modbus, HART(Option)
Wiring: 4 to 20mA / DC Power / Relay : up to 14 AWG
Explosion proof: Explosion-proof enclosure
Body Material: Aluminum
Input Voltage: DC : +24Vdc ±10%
Analog Output current
Fault : 0mA, 0~100% : 4~20mA(all readings : ± 0.2mA)
Maintenance/Initialize: 3mA
