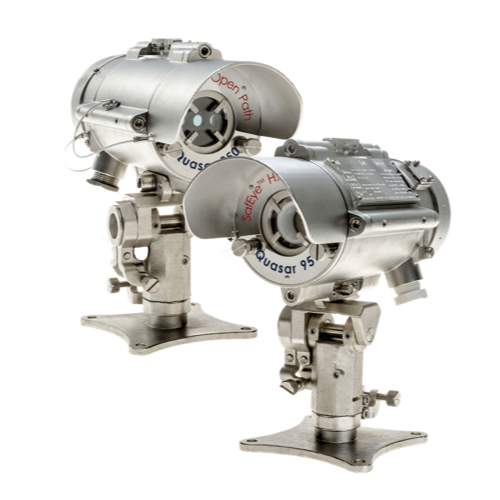

Sensidyne SafEye 903 Open Path Combustible Gas Detector (35-100m)

Detection Range

Feet: 115-330

Meters: 35-100

Detected Gas: C1-C8

Response Time: 3 sec.

Sensitivity Range:

0-5 LEL.m methane and propane

0-8 LEL.m ethylene

Spectral Response: 2.0 - 3.0µm

Displacement/Misalignment Tolerance: ±0.5°

Drift: ±7.5% of the reading or ±4% of the full scale (whichever is greater)

Minimum Detectable Level: 0.15 LEL.m

Temperature Range: –67°F (–55°C) to 149°F (65°C)

Power Supply: 24VDC nominal (18-32 VDC)

Power Consumption:

Detector: 250mA (300mA Peak) (peak includes heated optics)

Source: 250mA (300mA Peak)

Warm Up Time: 30 sec for transmitter and receiver

RS-485 Interface – Modbus: The RS-485 input/output provides complete data information to a PC and receives control commands from the PC or handheld unit

HART: HART communications on 0-20mA analog current (FSK) – used for maintenance and asset management

Dimensions:

Detector/Source: 10.5 x 5.1 x 5.1 inch (267 x 130 x 130mm)

Tilt Mount: 4.7 x 4.7 x 5.5 inch (120 x 120 x 158mm)

Weight:

Detector/Source: 11lb (5kg)

Tilt Mount: 4.2lb (1.9kg)

Water and Dust Tight: IP66 and IP68 NEMA 250: 6P
