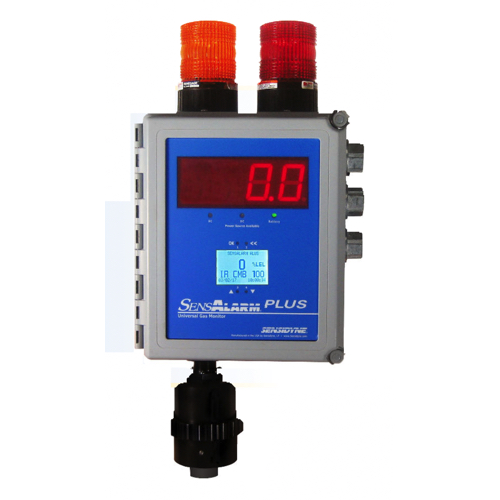

Sensidyne SensAlarm Plus Gas Detection System (100-240 VAC)

SENSORS

Gas Sensors: All Sensidyne Plus sensors

ToD: Test-On-Demand available for specific toxic sensors.

ELECTRICAL

Design: Microprocessor based with nonvolatile memory. Automatically resumes operation after power failure.

Power: 100-240 VAC, 50/60 Hz or 20-30 VDC.

Battery: Optional battery back-up available.

Outputs: 4-20 mA into 600 ohms; Optional RS-485, Modbus RTU Protocol, HART.

Strobe: Red lens flashing strobe (NEMA 4X) standard with optional dual strobes with red and amber strobe.

Horn: 95 dB piezo horn.

Relays: One (1) SPDT Configurable Fault Relay (Standard Configuration Energized/Failsafe). Three (3) SPDT Configurable Relays.

Contact Ratings: 6 Amps at 120 VAC or 28 VDC Resistive.

ENCLOSURE

Material: Fiberglass.

Description: UL listed, NEMA 4X Rated.

Type: Wall mount with tabs & threaded inserts.

Overall Size: 9.75 (W) by 20 (H) by 6.4 (D) Inches, 24.8 (W) by 50.8 (H) by 16.3 (D) cm.

Weight: 9.75 - 13.75 lbs. (4.4 - 6.3 Kg) including sensor.

Conduit: 3/4 inch EMT connector supplied (side).

Temperature: -4° to 122°F (-20° to 50°C).

Humidity: 0-90 %RH, non-condensing.

Location: Indoor or Outdoor.

Sensor Head: Sensor head enclosure and retaining ring are black anodized aluminum; splash guard, and most other accessories are made of PVC.

DISPLAYS & CONTROLS

LCD Display: Alphanumeric (Value, Gas, & Units).

LED Display: 4 Digit x 1.5 Inch Red LED (Value).

Indicators: Power source LEDs (AC, DC and Battery), Alarm and corresponding to magnetic keypad LEDs.

Security: Password Protected Configuration Menu.

Auto Config.: System automatically senses the presence of optional modules and features.

Reset/silence: External push button switch for acknowledge (Alarm sequence 3A).

Annunciators: Audible (+95db) & Visual single strobe with optional second strobe
