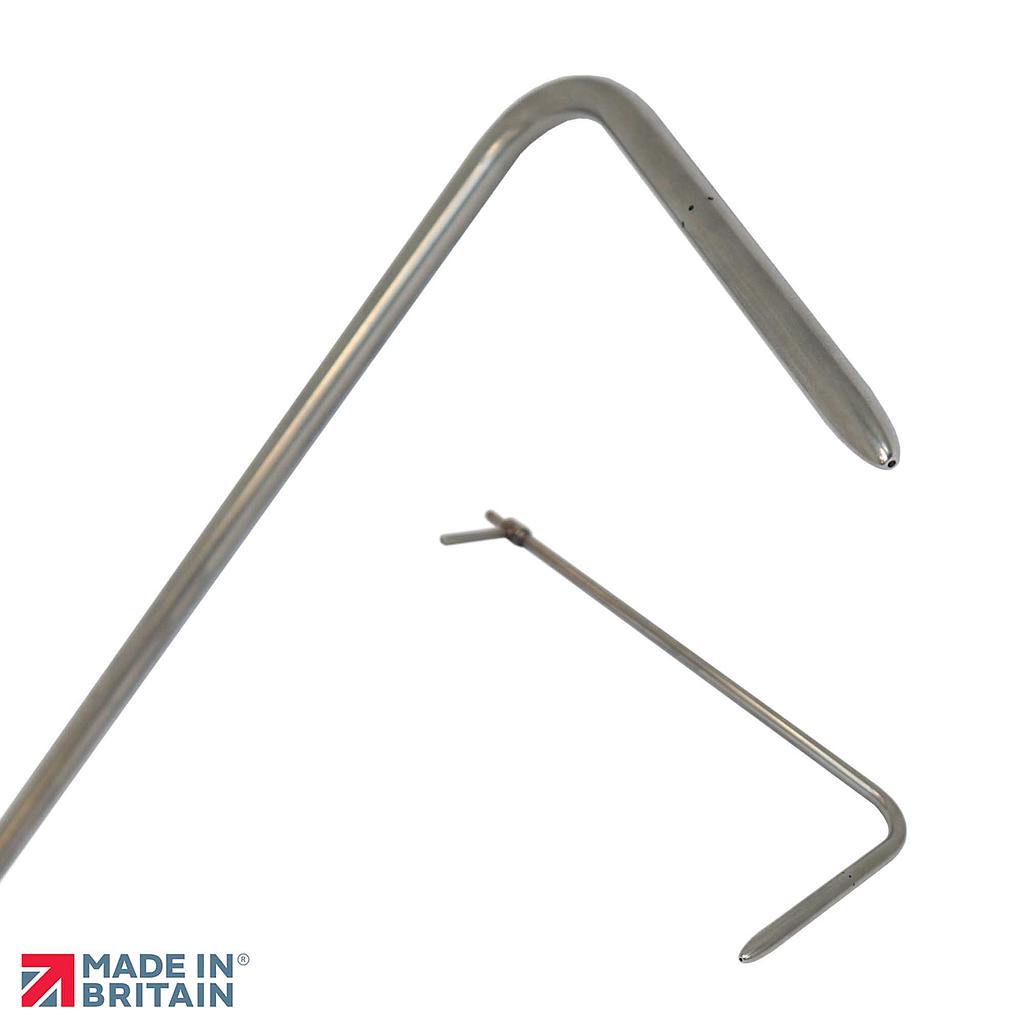

Sensing Precision L-Type Pitot Tubes
Manufacturer: Sensing Precision Model: L-Type - Request a Quotation
- Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best priceHanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Magnification Factor (M): 0.997 ±0.001 (approximated to 1 in most cases)
Sizes Available Four diameters: 2.3mm, 4.0mm, 8.0mm & 9.5mm in lengths from 200mm to 3mm
Temperature Range: Ø8.0 & 9.5mm up to 680°C continuously & 800°C intermittently Ø2.3 and 4.0mm up to 550°C
Materials: Fully Stainless Steel Construction (Silver Brazed Joints on Ø2.3 and 4.0mm only)
Special Functions: Only requires an access hole 35mm, regardless of duct wall thickness Cast head gives more predictable result than a fabricated head.
Static Pressure Tapping doubles as a Direction Pointer
Available with a 90° Bent Head or Fully Straight
Extras Available: Integral Thermocouple to allow for simultaneous monitoring of duct air temperature and velocity with minimal disturbance.
