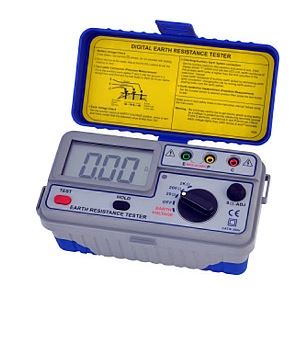

SEW 1120 ER Digita Earth Resistance Testers 3 Wire (2000Ω)
Manufacturer: SEW Model: 1120 ER Origin: Taiwan - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Measuring ranges: 0-20Ω / 0-200Ω / 0-2000Ω /(2%rdg+2dgt)
resolution
0-20Ω : 0.01Ω
0-200Ω : 0.1Ω
0-2000Ω : 1Ω
Measuring Earth voltage: 0-200 Vac/±(1%rdg+2dgt)
Dimensions: 175(L) × 85(W) × 75(D)mm
Weight: 600g
Power source: 1.5V (AA) × 8
Details
|
|||||||||||||||||||||||||||||||||||
| FEATURES | |||||||||||||||||||||||||||||||||||
| ● Capable of measuring earth resistance and earth voltage. ● 2mA measuring current permits the testing of earth resistance without tripping earth leakage current breakers in the circuit under test. ● The leads are supplied as standard accessories for simplified two-wire measuring system. ● 0Ω adjustment. ● Battery operated. ● Data hold function. ● Low battery indication. ● Calibration performed with supplied test leads. |
|||||||||||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||||||||||
|
