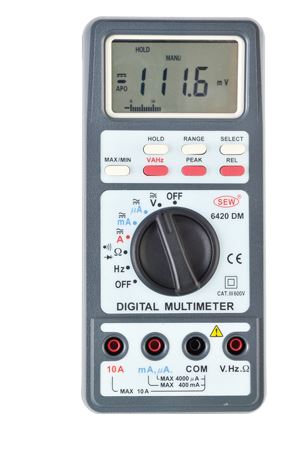

SEW 6420 DM Digital Multimeters

  • Manufacturer: SEW
    Model: 6420 DM
    • Request a Quotation Request a Quotation
  • 97.90
  •  Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: SEW
Made in Taiwan
Model: 6420 DM
Warrantly: 12 months
DC Voltage:
  Ranges: 400.0mV / 4.000V / 40.00V / 400.0V / 1000V
  Resolution: 100μV / 1mV / 10mV / 100mV / 1V
  Accuracy: ±(0.5%rdg+3dgt)
AC Voltage:
  Ranges: 400.0mV / 4.000V / 40.00V / 400.0V / 750V
  Resolution: 100μV / 1mV / 10mV / 100mV / 1V
  Accuracy: ±(1%rdg+5dgt)
DC Current:
  Ranges: 400.0μA / 4000μA / 40.00mA / 400.0mA / 10A
  Resolution: 0.1μA / 1μA / 0.01mA / 0.1mA / 10mA
  Accuracy: ±(1%rdg+5dgt) / ±(2%rdg+2dgt)
AC Current:
  Ranges: 400.0μA / 4000μA / 40.00mA / 400.0mA / 10A
  Resolution: 0.1μA / 1μA / 0.01mA / 0.1mA / 10mA
  Accuracy: ±(1%rdg+5dgt) / ±(2%rdg+3dgt)
Resistance:
  Ranges: 400.0Ω / 4.000kΩ / 40.00kΩ / 400.0kΩ / 4.000MΩ / 40.00MΩ
  Resolution: 0.1Ω / 1Ω / 10Ω / 100Ω / 1kΩ / 10kΩ
  Accuracy: ±(1.5%rdg+3dgt) / ±(2%rdg+4dgt)
Frequence    :
  Ranges: 4.000kHz / 40.00kHz / 400.0kHz / 4.000MHz / 40.00MHz
  Resolution: 1Hz / 10Hz / 100Hz / 1kHz / 10kHz
  Accuracy: ±(1%rdg+2dgt)
Continuity:
  Ranges: 400Ω
  Resolution: 0.1Ω
  Continuity beeper: < 35Ω
Low battery indication
Operating temperature: 0ºC ~ 40ºC, 80% Max.
Storage temperature & humidity: -10ºC ~ 50ºC, 80% Max.
Dimensions: 192(L) × 88.5(W) × 45(D)mm
Weight (battery included): Approx. 350g
Power source: 1.5V (AAA) × 2
Safety standard: EN 61010-1 CAT III 600V / EN 61326-1
